GENERAL INFORMATION
This transmission is the newly developed 5-speed automatic transmission that merges advanced electronic
technology and mechanical technology.
(1) A hydraulic balance mechanism is incorporated for the transmission clutch, allowing speed changes
at ultra-high speeds to be handled.
(2) The weight has been reduced by using precision sheet metal pressing of the clutch retainer, etc.,
and using aluminum die cast for the oil pump housing, etc.

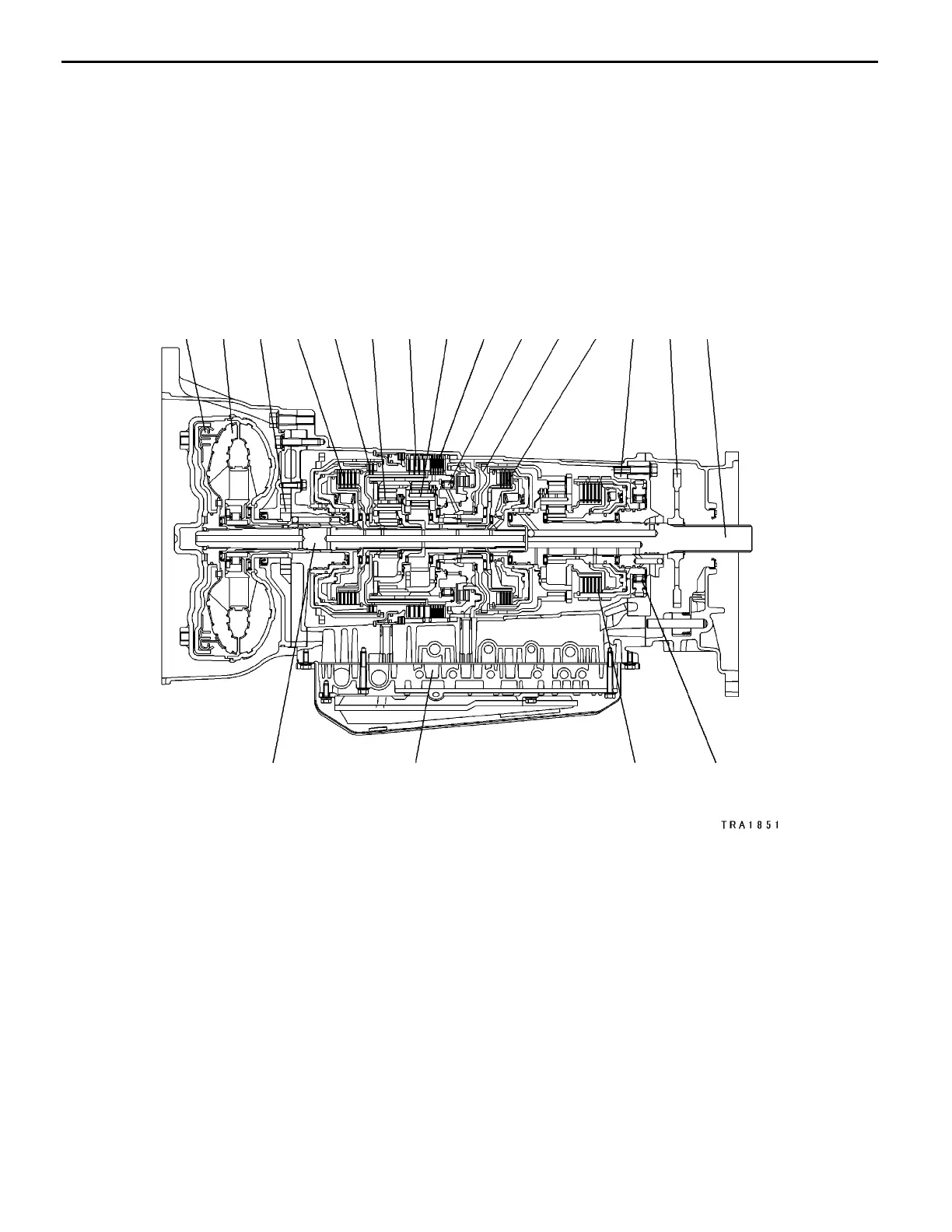

SECTIONAL VIEW <TRANSMISSION>
12345678910111213
15
16
17
14
18
19
1. Torque converter clutch
2. Torque converter
3. Oil pump
4. Overdrive clutch
5. Reverse clutch
6. Overdrive planetary carrier
7. Second brake
8. Output planetary carrier
9. Low/reverse brake
10. One-way clutch
11. Center support
12. Underdrive clutch
13. Output shaft support
14. Parking gear
15. Output shaft
16. One-way clutch
17. Direct clutch
18. Valve body
19. Input shaft
