V5A51 -
Underdrive Clutch
23E-10-3
"
D
A

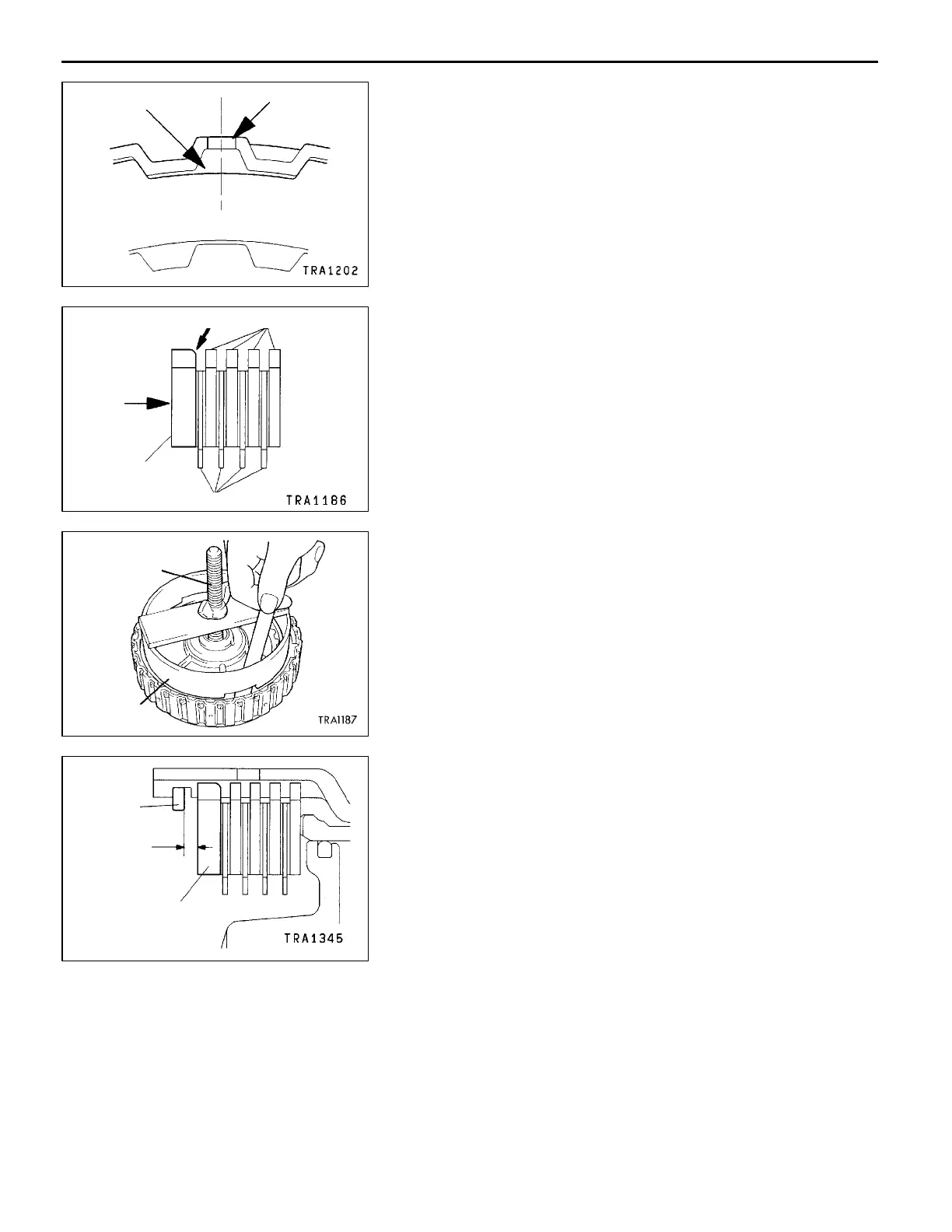

CLUTCH PLATE / CLUTCH DISC / REACTION
PLATE INSTALLATION
1. Alternately assemble the clutch plates and clutch discs
in the underdrive clutch retainer.
When assembling the four clutch plates, align t he seciton
having no teeth (A in the illustration) with the underdrive
clutch retainer hole (B in the illustration).
2. Install the reaction plate so that it is oriented as shown
in the illustration.
Assemble in the same manner as the clutch plate so
that the section with no teeth (“A” in the illustration)
matches the retainer hole (“B” in the illustration).
"
E
A
SNAP RING INSTALLATION
1. Install the snap ring in the groove of the underdrive clutch
retainer.
2. Set the special tools as shown in the illustration, and
compress th e clutch element.
3. Confirm that the clearance between the snap ring and
reaction plate (underdrive clutch end play) is the standard
value. If the clearance is not at the standard value, select
a suitable snap ring a n d adjust so that the clearance
is within the standard value.
Standard value: 1.6 - 1.8 mm
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
A
B
Clutch discs
Clutch platesRounded edge
“W”
stamp
Reaction
plate
MD998924
MB991629
Snap ring
End play
Reaction
plate
