V5A51 -
Reverse and Overdrive Clutch
23E-6-4
"
H
A
SNAP RING INSTALLATION

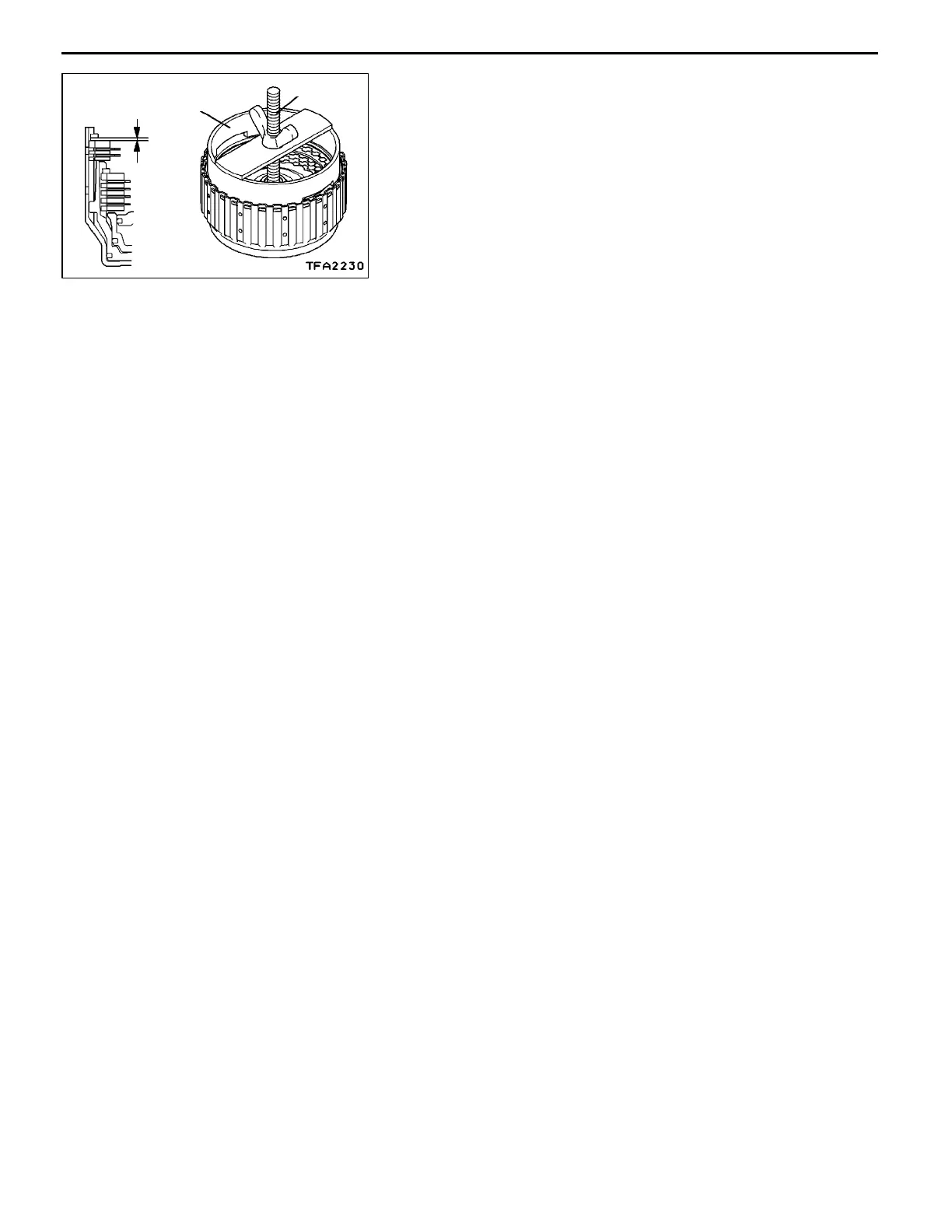

1. Install the snap ring in the reverse clutch retainer groove.
2. Set the special tools as shown in the illustration, and
compress th e clutch element.
3. Check that the clearance between the snap ring a n d
reaction plate (reverse clutch end play) is the standard
value.
If the clearance is not at the standard value, select a
suitable snap ring a n d adjust so that the clearance is
within the standard value.
Standard value: 1.5 - 1.7 mm
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
MB991789
MD998924
End play
