V5A51 -
Shift Rail Drive Gear
23E-22-1

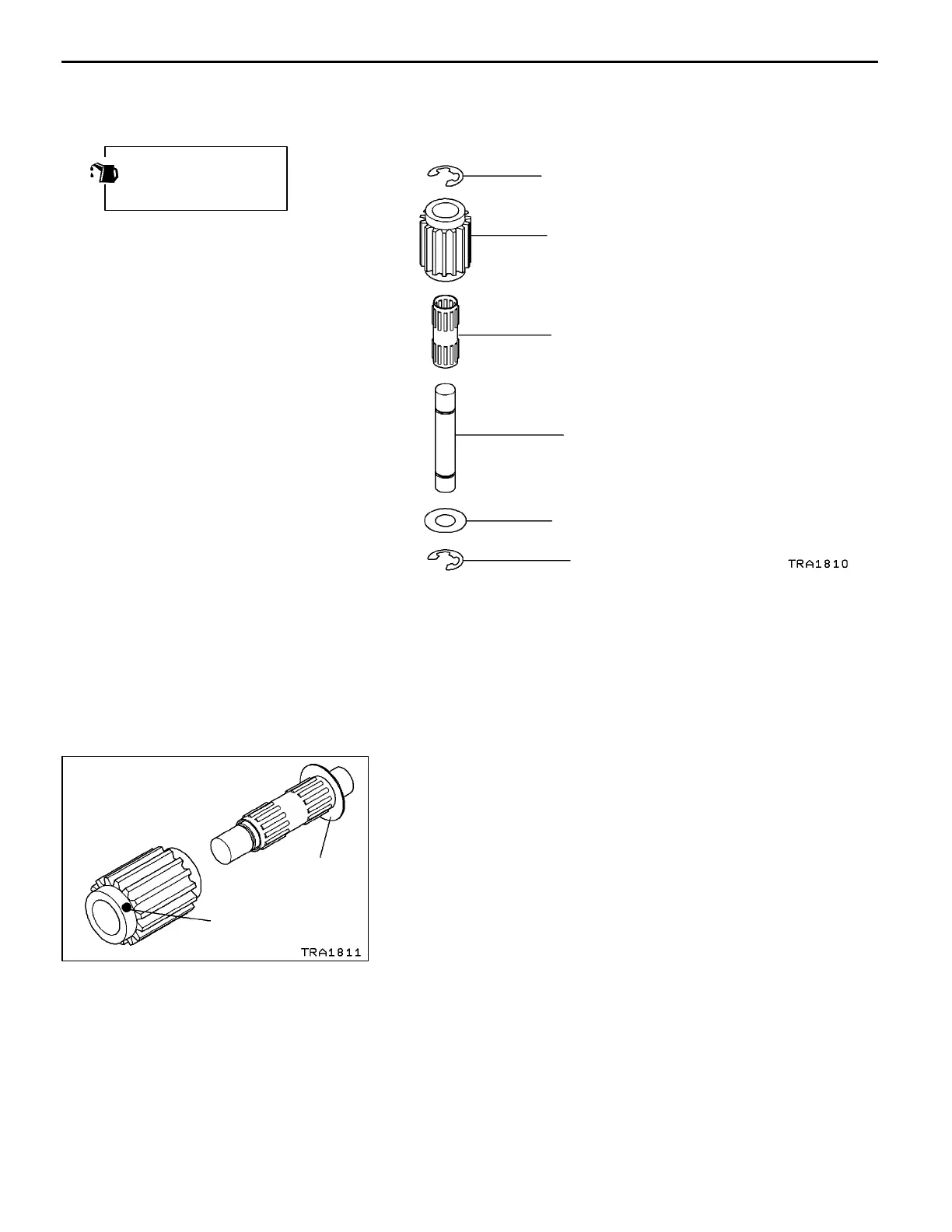

22. SHIFT RAIL DRIVE GEAR
DISASSEMBLY AND ASSEMBLY
1
2
3
4
5
6
Apply gear oil to all
moving parts before
installation.
Disassembly steps
1. Snap ring
"
A
A 2. Shift rail drive gear
3. Bearing
4. Shift rail drive gear shaft
5. Washer
6. Snap ring
ASSEMBLY SERVICE POINT
"
A
A
SHIFT RAIL DRIVE GEAR INSTALLATION
Install the shift rail drive gear such that its mark does not
face the washer.
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
Washer
Mark
