V5A51 -
Low/reverse Annulus Gear
23E-8-1

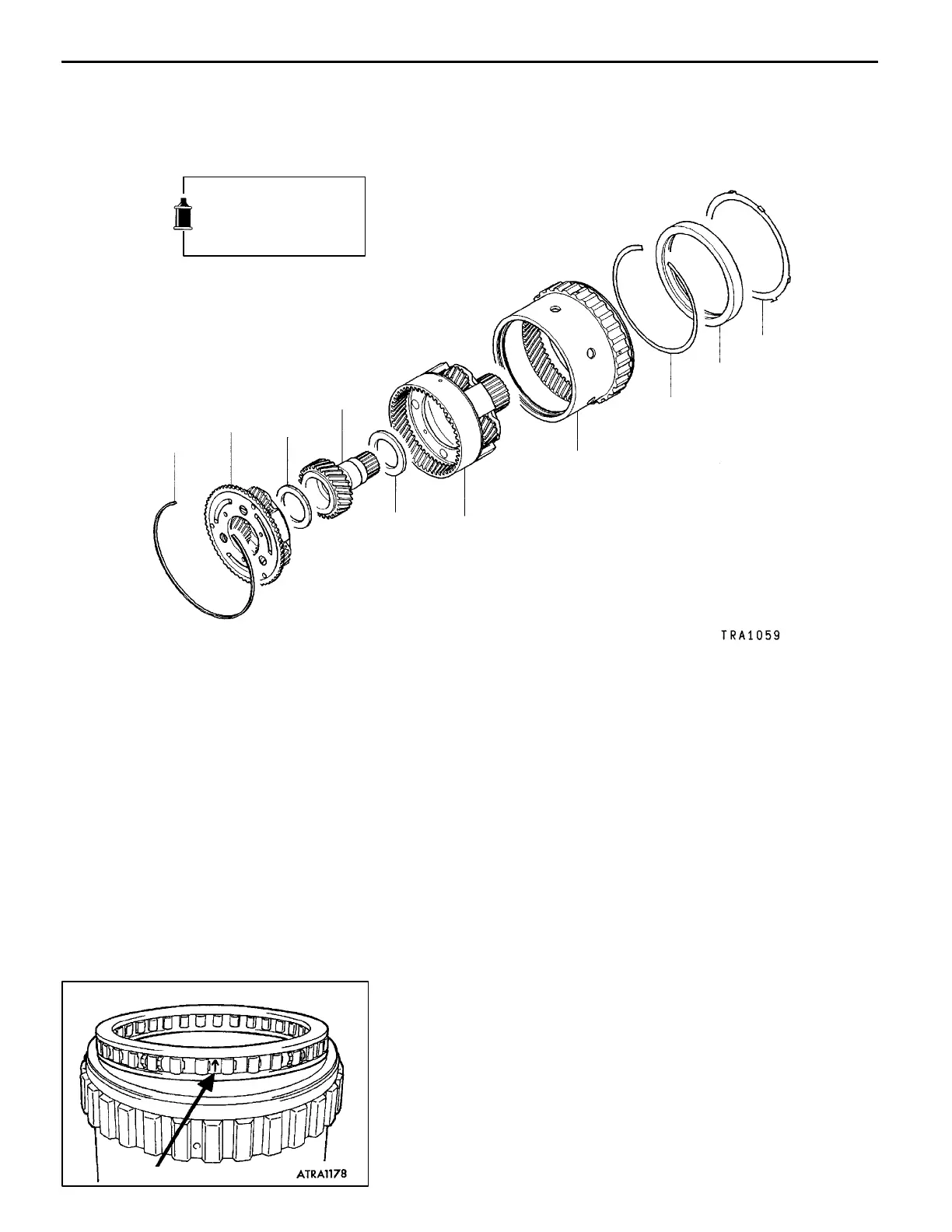

8. LOW/REVERSE ANNULUS GEAR
DISASSEMBLY AND ASSEMBLY
1
2
3
4
5
6
7
8
9
10
Apply automatic
transmission fluid to
all moving parts
before installation.
Disassembly steps
1. Snap ring
2. Overdrive planetary carrier
"
D
A 3. Thrust bearing No.5
4. Underdrive sun gear
"
C
A 5. Thrust bearing No.6
6. Output planetary carrier
"
B
A 7. Stopper plate
"
A
A 8. One-way clutch
9. Snap ring
10. Low/reverse annulus gear
ASSEMBLY SERVICE POINTS
"
A
A
ONE-WAY CLUTCH INSTALLATION
Install the one-way clutch so that the arrow stamp is oriented
as shown in the illustration.
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
Arrow
