V5A51 -
Direct Annulus Gear
23E-12-1

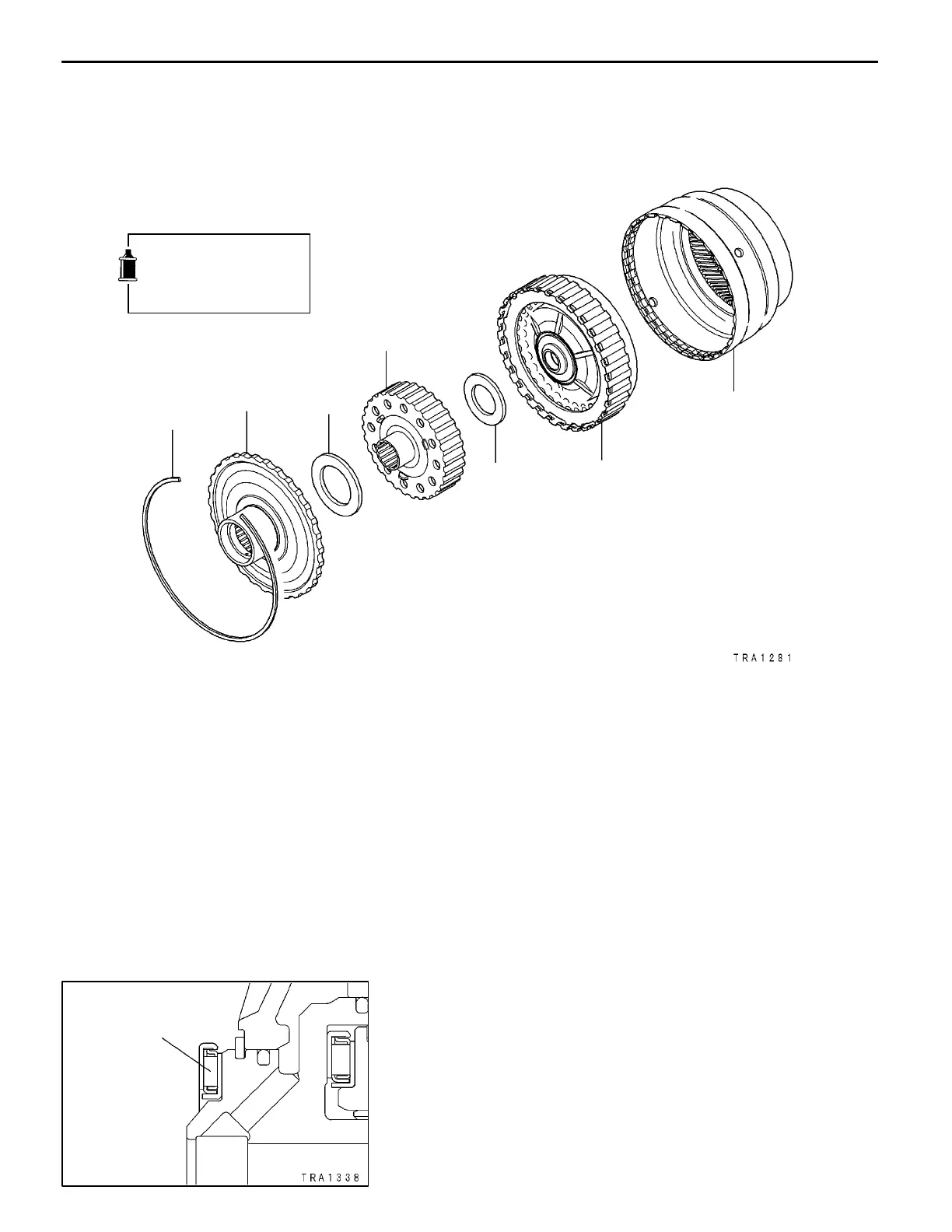

12. DIRECT ANNULUS GEAR
DISASSEMBLY AND ASSEMBLY
1
2
4
5
6
7
3
Apply automatic
transmission fluid to
all moving parts
before installation.
Disassembly steps
1. Snap ring
2. Output flange
"
B
A 3. Thrust bearing No.10
4. Underdrive clutch hub
"
A
A 5. Thrust bearing No.11
6. Underdrive clutch
7. Direct annulus gear
ASSEMBLY SERVICE POINTS
"
A
A
THRUST BEARING NO.11 INSTALLATION
Apply vaseline or petrolatum jelly on the thrust bearing No.11,
and then install on the underdrive clutch.
Caution
D
Take care not to mistake the thrust bearing No.11
mounting direction.
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
Thrust bearing No.11
