V5A51 -
Valve Body
23E-11-5
"
D
A

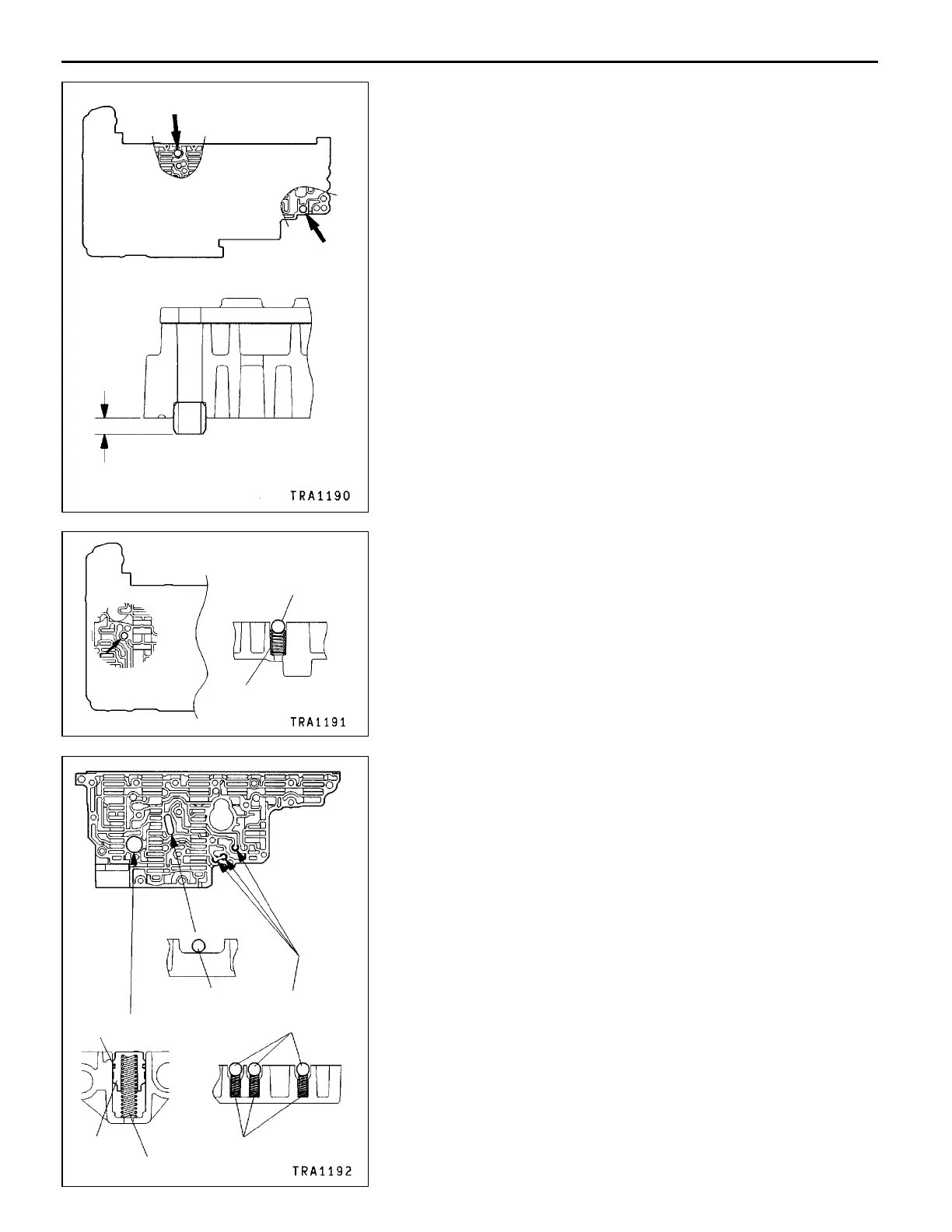

KNOCK BUSHING INSTALLATION
Install the knock bushing onto the lower valve body position
shown in the illustration.
"
E
A
SPRING / STEEL BALL (LINE RELIEF)
INSTALLATION
Install the spring (7 mm in diameter, 17.3 mm in length) and
the steel ball (6.4 mm in diameter) onto the lower valve body
position shown in the illustration.
"
F
A
SPRING / STEEL BALL (ORIFICE CHECK BALL)
/ BALL (ORIFICE CHECK BALL) / DAMPING
VALVE SPRING / SEAL RING / DAMPING VALVE
INSTALLATION
1. Install the spring (4.5 mm in diameter, 15.4 mm in length)
and the steel ball (6.4 mm in diameter) onto the upper
valve body position shown in the illustration.
2 Install the ball (rubber) (6.4 mm in diameter) onto the
upper valve body position shown in the illustration.
3. After installing the seal ring onto the damping valve, install
together with the damping valve spring (7.7 mm in
diameter, 35.8 mm in length) onto the upper valve body
position shown in the illustration.
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
4.5 mm
Steel ball
Spring
Seal ring
Ball
(rubber)
Steel
ball
Damping
valve
Damping
spring
Spring
