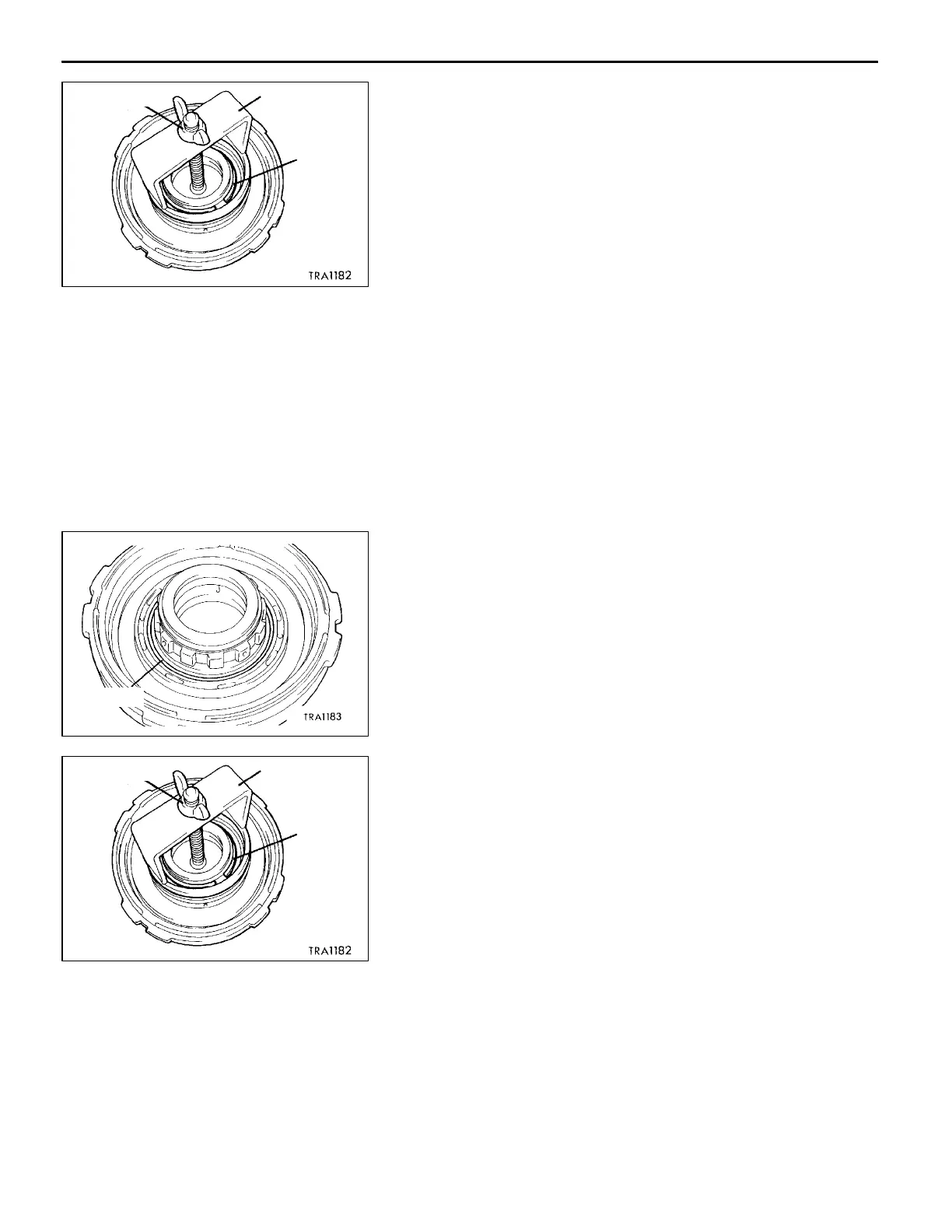

V5A51 -
Center Support
23E-9-2
DISASSEMBLY SERVICE POINT
A
A
"
SNAP RING REMOVAL
1. Set the special tools as shown in the illustration so that
they are pressed against the inner race of the one-way
clutch.
2. Screw in the special tool nut, and lightly press against
the inner race of the one-way clutch.
3. Remove the snap ring.
ASSEMBLY SERVICE POINTS
"
A
A
D-RING INSTALLATION
1. Apply ATF to the D-ring.
2. Install the D-ring in the groove on the outer and inner
periphery of the piston. Make sure that the D-ring is not
twisted or damaged when installing.
"
B
A
O-RING INSTALLATION
Install the O-ring onto the center support at the position shown
in the illustration.
"
C
A
SNAP RING INSTALLATION
1. Set the special tools as shown in the illustration.
2. Screw in the special tool nut, and lightly press against
the inner race of the one-way clutch.
3. Install the snap ring.
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
MD998924
MB991630
Snap
ring
O-ring
MD998924
MB991630
Snap
ring
