V5A51 -
Rear Output Shaft
23E-19-1

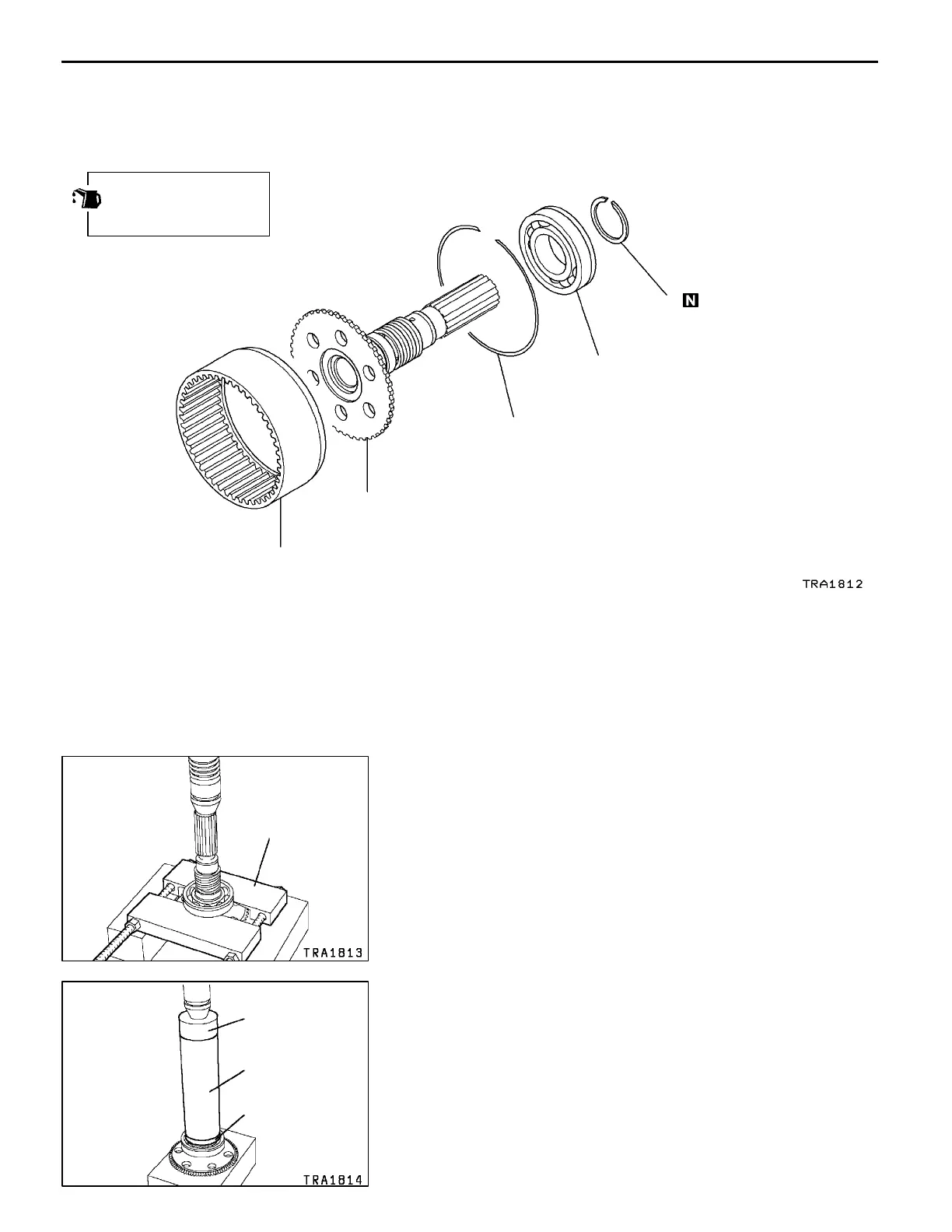

19. REAR OUTPUT SHAFT
DISASSEMBLY AND ASSEMBLY
1
2
5
4
3
Apply gear oil to all
moving parts before
installation.
Disassembly steps
"
C
A 1. Snap ring
2. Annulus gear
"
B
A 3. Snap ring
A
A
""
A
A 4. Ball bearing
5. Rear output shaft
DISASSEMBLY SERVICE POINT
A
A
"
BALL BEARING REMOVAL
Use the special tool to remove the ball bearing.
ASSEMBLY SERVICE POINTS
"
A
A
BALL BEARING INSTALLATION
Use the special tools to install the ball bearing.
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
MD998917
MD998812
MD998814
MD998824
