V5A51 -
Transfer
23E-15-5
DISASSEMBLY SERVICE POINTS
A
A
"

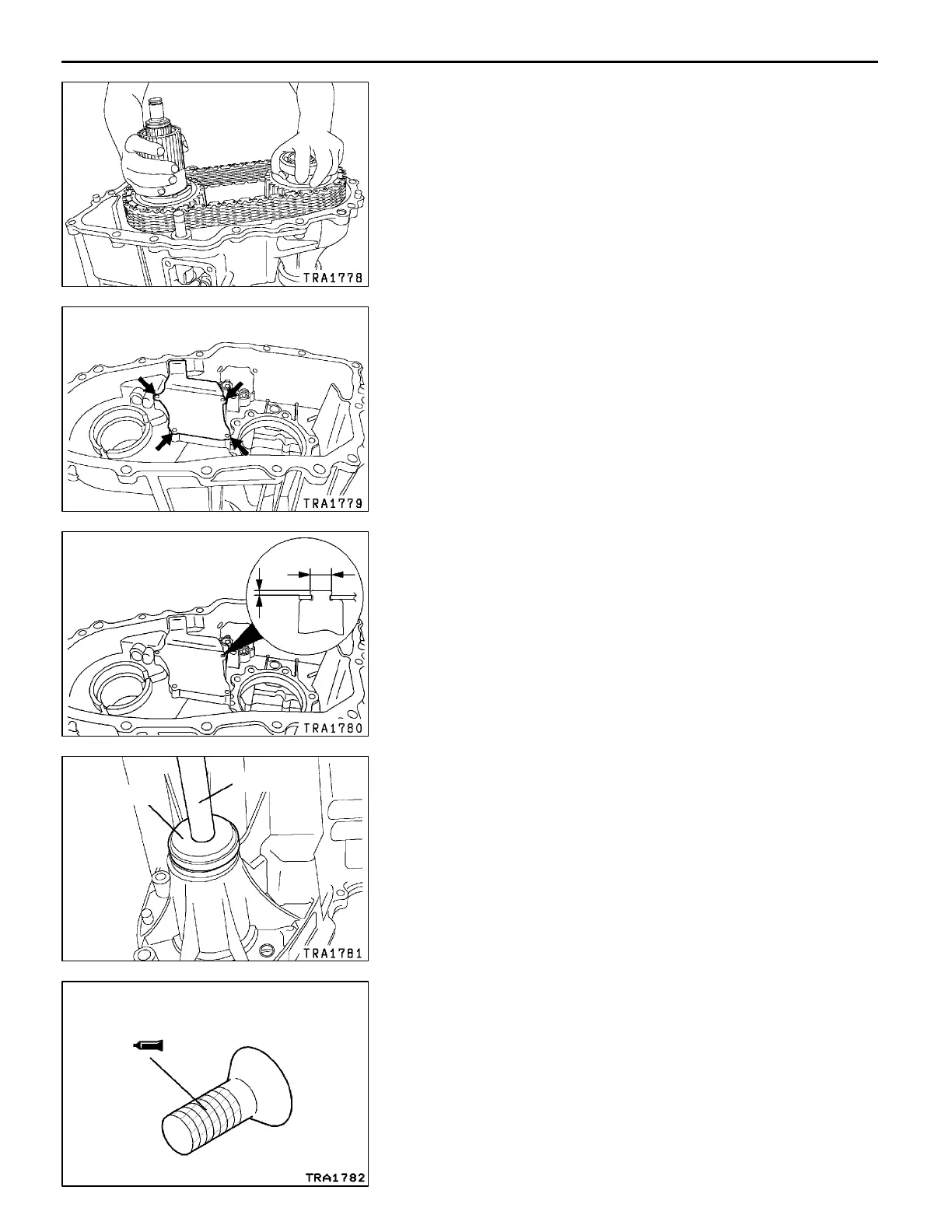

CHAIN / FRONT OUTPUT SHAFT / SUN GEAR
REMOVAL
Remove the chain, front output shaft and sun gear as a set
from the transfer case.
A
B
"
OIL POOL COVER REMOVAL
Unstake the positions shown in the illustration to remove
the oil pool cover.
Caution
D
The oil pool cover normally does not require
disassembly. Once it is removed, the transfer case
cannot be reused.
ASSEMBLY SERVICE POINTS
"
A
A
OIL POOL COVER INSTALLATION
Install the oil pool cover on a new transfer case. Stake the
projecting portions of the transfer so that the dimensions
will be as illustrated.
"
B
A
OIL SEAL INSTALLATION
1. Use the special tools to install the oil seal on the transfer
case.
2. Apply grease to the lip of the oil seal.
Specified grease:
MITSUBISHI genuine grease part No. 0101011 or
equivalent
"
C
A
REAR BEARING RETAINER INSTALLATION
The bolts used for mounting the rear bearing retainer are
pre-coated ones.
When they are to be reused, apply sealant to the threaded
portion before installation.
Specified sealant:
MITSUBISHI genuine sealant part No. MD997740 or
equivalent
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
5mm
2mm
MB990932
MB990938
To Next Page
