Mitsubishi V5A51 User Manual

V5A51 -
Transfer
23E-15-4
67
Apply gear oil to all
moving parts before
installation.
20
±
2Nm
68
71
73
74
72
76
75
69
70
79
80
81
82
77
78
83
35
±
6Nm
35
±
6Nm

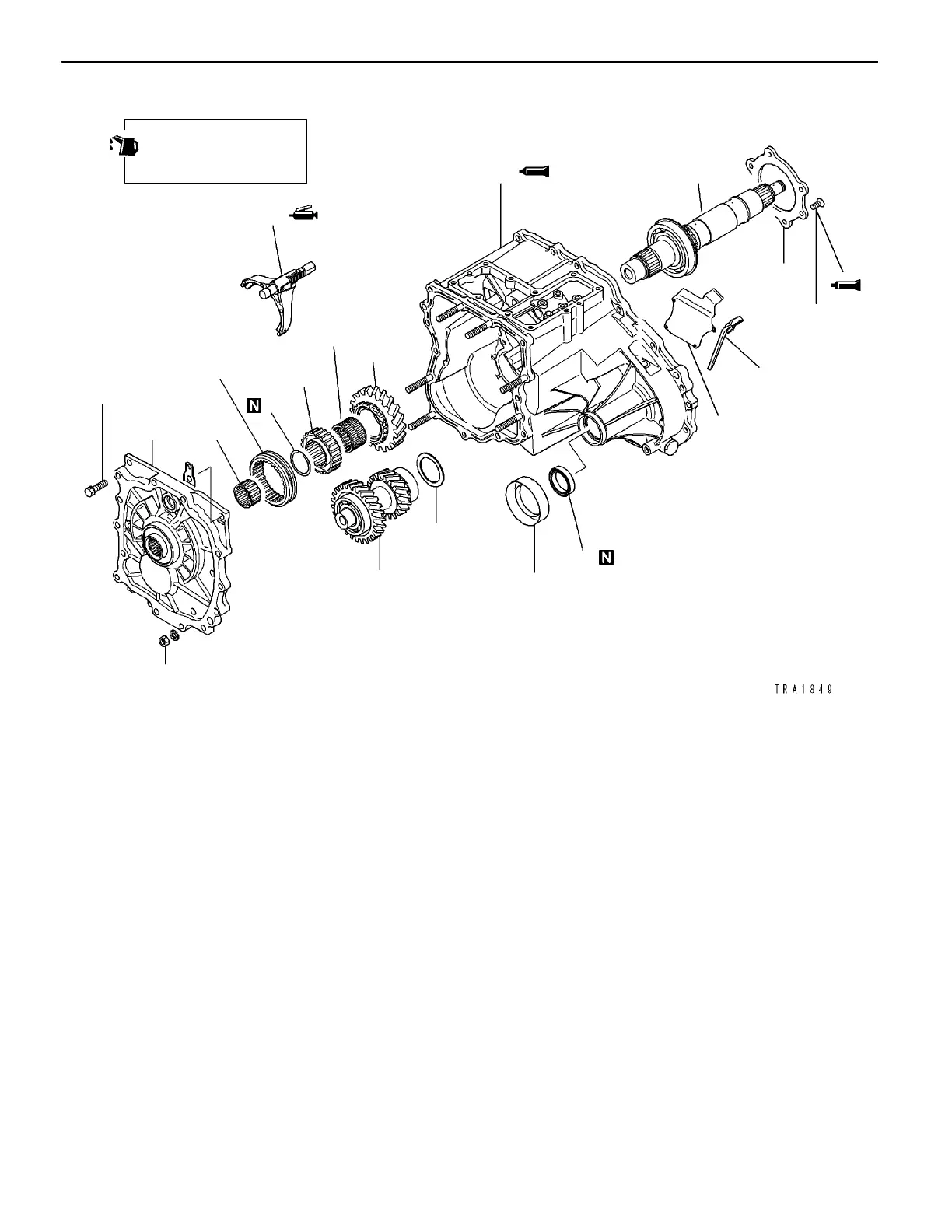

Disassembly steps
"
G
A 67. Transfer case plate
68. Bearing
69. Counter shaft gear
"
F
A 70. Spacer
"
E
A 71. H-L clutch sleeve
"
E
A 72. H-L shift fork
"
D
A 73. Snap ring
74. H-L clutch hub
75. Low speed gear
76. Bearing
"
C
A 77. Rear bearing retainer
78. Transfer drive shaft
79. Dust seal guard
"
B
A 80. Oil seal
A
B
""
A
A 81. Oil pool cover
82. Oil guide
83. Transfer case
