A

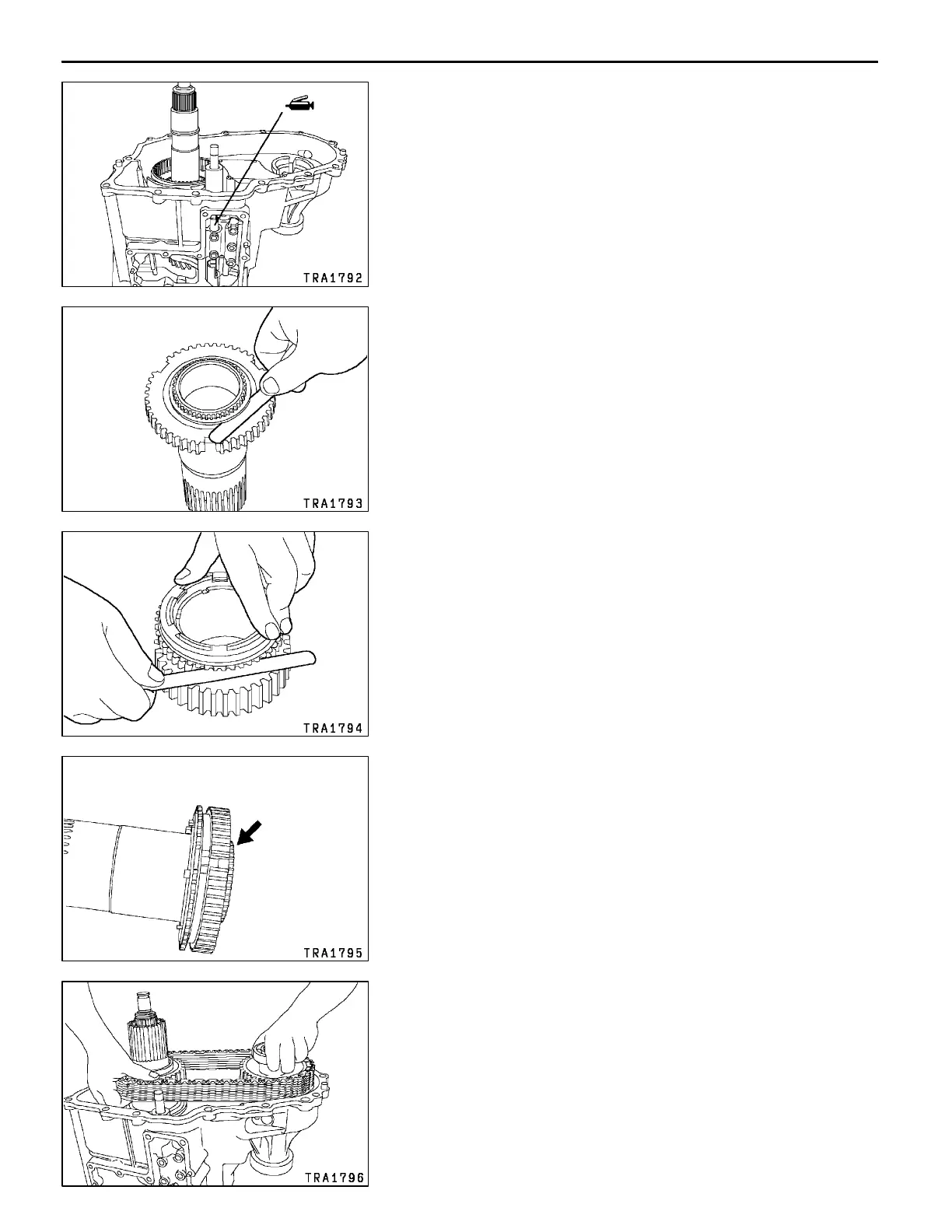

2-4WD SHIFT FORK / 2-4WD CLUTCH SLEEVE
INSTALLATION
Apply grease to the 2-4WD shift fork shaft inserting portion
and install the 2-4WD shift fork and 2-4WD clutch sleeve
in combined state in the transfer case.
Specified grease:
MITSUBISHI genuine grease part No. 0101011 or
equivalent
"
K
A
SNAP RING INSTALLATION
Select a proper snap ring so that the end play of the 2-4WD
clutch hub will have the standard value, a n d install it on the
sun gear.
Standard value: 0 - 0.08 mm
"
L
A
SYNCHRONIZER OUTER RING / SYNCHRONIZER
CONE / SYNCHRONIZER INNER RING
INSTALLATION
1. Combine the synchronizer outer ring, synchronizer cone
and synchronizer inner ring, press them against the drive
sprocket, an d measure the dimension shown in the
illustration.
Limit: 0.3 mm
2. If t he dimension is out of the limit value, replace them
with a synchronizer ring set.
3. Apply gear oil to the synchronizer outer ring and
synchronizer inner ring.
4. Line up the notched portion of the 2-4WD clutch hub
with th e projecting portion of t h e synchronizer ring and
install the ring on the 2-4WD clutch hub.
"
M
A
DRIVE SPROCKET / FRONT OUTPUT SHAFT /
CHAIN INSTALLATION
1. Set the chain in mesh with the drive sprocket and front
output shaft sprocket and install them in the transfer case.
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
To Next Page
