V5A51 -

General Information

23E-0-4

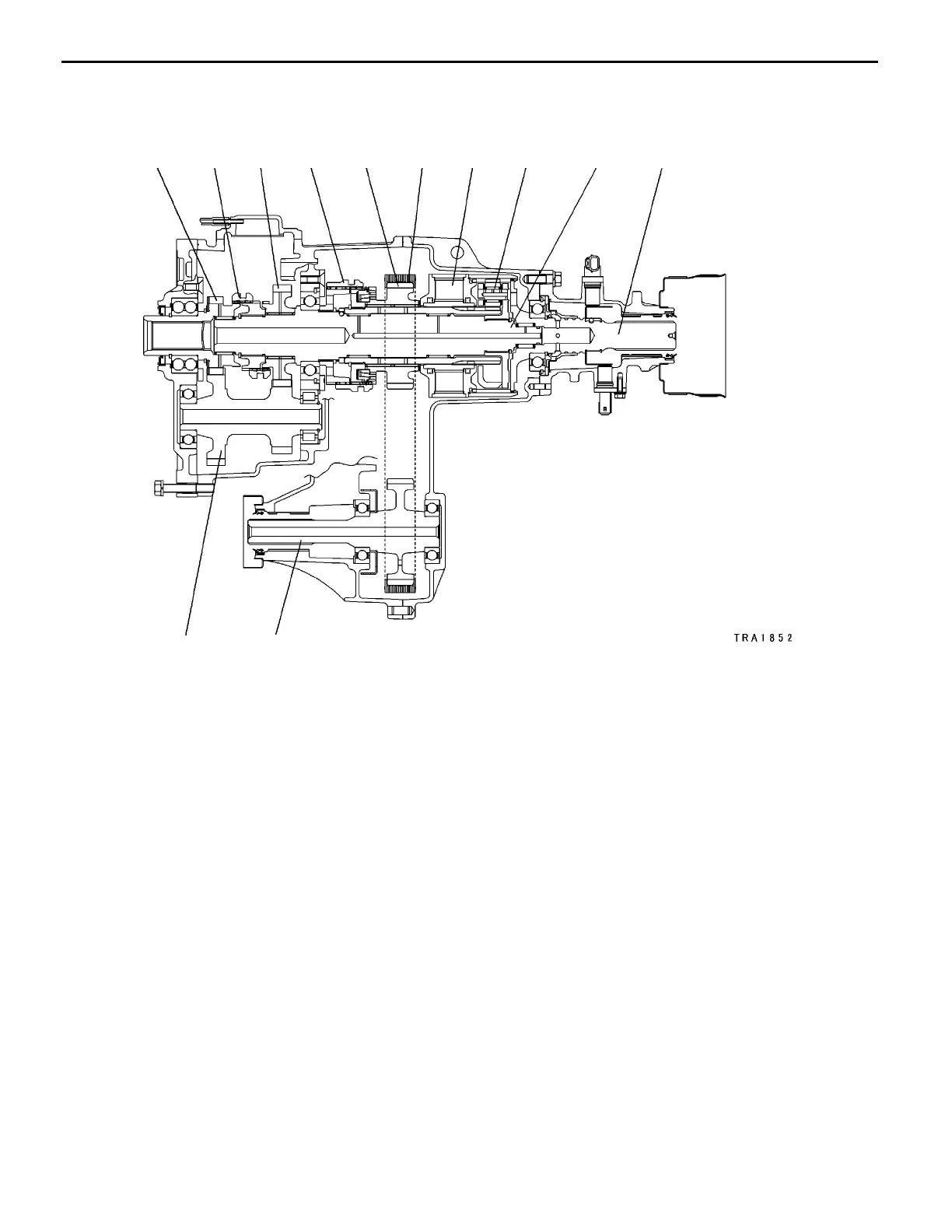

SECTIONAL VIEW <TRANSFER>

1 2 3 4 5 6 7 8 9 10

1. Transfer input gear

2. H-L clutch

3. Low speed gear

4. 2-4WD clutch sleeve

5. Drive sprocket

6. Chain

7. Viscous coupling

8. Center differential planetary carrier

9. Transfer drive shaft

10. Rear output shaft

11. Front output shaft

12. Counter shaft gear

AddedPWEE8920-I

Mar. 2000Mitsubishi Motors Corporation

Table of Contents1
General Information3
- Sectional View Transmission3
- Sectional View Transfer4
- Hydraulic Control System5
- Specifications 23E-1-16
  - General Specifications7
  - Service Specifications8
    - Transmission8
    - Transfer8
  - Valve Body Spring Identification9
  - Torque Specifications10
  - Snap Ring, Thrust Race, Spacer and Pressure Plate for Adjustment12
  - Sealants17
  - Form-In-Place Gasket (FIPG)18
  - Lubricants18
    - Disassembly18
    - Form-In-Place Gasket Application18
- Transmission Model Table - Model 20016
- 2-119
- Special Tools19
- 3-124
  - Assembly Service Point24
  - Disassembly and Assembly24
- Transmission and Transfer24
- 4-125
- Transfer Case Adapter25
  - "BA Sealing Cap Installation26
  - "CA Parking Sprag Spring Installation26
- 5-127
- Transmission27
  - Disassembly32
  - Assembly42
  - Identification of Thrust Bearings and Thrust Races43
- 6-162
- Reverse and Overdrive Clutch62
  - "AA D-Ring Installation63
  - "DA Snap Ring Installation63
  - AA" Snap Ring Removal63
  - Disassembly Service Point63
  - "EA Clutch Plate/Clutch Disc/Reaction Plate Installation64
  - "FA Snap Ring Installation64
  - "GA Clutch Plate/Clutch Disc/Reaction Plate Installation64
  - "HA Snap Ring Installation65
- 7-166
- Second Brake66
- "AA One-Way Clutch Installation67
- 8-167
- Low/Reverse Annulus Gear67
  - "BA Stopper Plate Installation68
  - "CA Thrust Bearing No. 6 Installation68
  - "DA Thrust Bearing No. 5 Installation68
- 9-169
- Center Support69
  - "AA D-Ring Installation70
  - "BA O-Ring Installation70
  - "CA Snap Ring Installation70
  - AA" Snap Ring Removal70
Underdrive Clutch71
10-171
- "BA Return Spring Installation72
- "DA Clutch Plate/Clutch Disc/Reaction Plate Installation73
- "EA Snap Ring Installation73
Valve Body74
- 11-174
"AA Thrust Bearing No. 11 Installation80
Direct Annulus Gear80
12-180
"BA Thrust Bearing No. 10 Installation81
Direct Clutch82
- "CA Clutch Plate/Clutch Disc/Reaction Plate Installation83
- "BA Snap Ring Installation83
- "AA D-Ring Installation83
- AA" Snap Ring Removal83
- "DA Snap Ring Installation84
- "AA One-Way Clutch Installation85
Output Shaft Support85
14-185
Transfer86
15-186
- "BA Oil Seal Installation90
- AB" Oil Pool Cover Removal90
- "AA Oil Pool Cover Installation90
- AA" Chain/Front Output Shaft/Sun Gear Removal90
- "DA Snap Ring Installation91
- "EA H-L Shift Fork/H-L Clutch Sleeve Installation91
- "FA Spacer Installation91
- "GA Transfer Case Plate Installation91
- "HA Snap Ring Installation92
- "IA Steel Ball/Spacer Installation92
- "MA Drive Sprocket/Front Output Shaft/Chain Installation93
- "KA Snap Ring Installation93
- "LA Synchronizer Outer Ring/Synchronizer Cone/Synchronizer Inner Ring Installation93
- "JA 2-4WD Shift Fork/2-4WD Clutch Sleeve Installation93
- "NA Rear Output Shaft Installation94
- "PA Snap Ring Installation94
- "QA Spacer Installation95
- "RA Oil Seal Installation95
- "SA Rear Cover Installation95
- "WA Switch Installation96
- "UA Shift Rail Drive Gear Installation96
- "TA Main Shift Rail/Shift Actuator Installation96
- Inspection96
Transfer Case Plate97
16-197
- "BA Bolt Installation98
- AA" Ball Bearing Removal99
- "AA Ball Bearing Installation99
Input Gear99
17-199
- "BA Snap Ring Installation100
- Countershaft Gear101
- AB" Spacer/Roller Bearing/Inner Race Removal101
18-1101
- "AA Inner Race/Roller Bearing/Spacer Installation102
- "BA Snap Ring Installation102
- "CA Ball Bearing Installation102
Rear Output Shaft103
19-1103
Front Output Shaft105
20-1105
Transfer Drive Shaft107
21-1107
"AA Shift Rail Drive Gear Installation108
Shift Rail Drive Gear108
22-1108
- 2-4WD Shift Rail and H-L Shift Rail109
- "AA Shift Fork/Shift Rail Installation109
- "BA Spring Pin Installation109
