V5A51 -
Transfer Case Adapter
23E-4-1

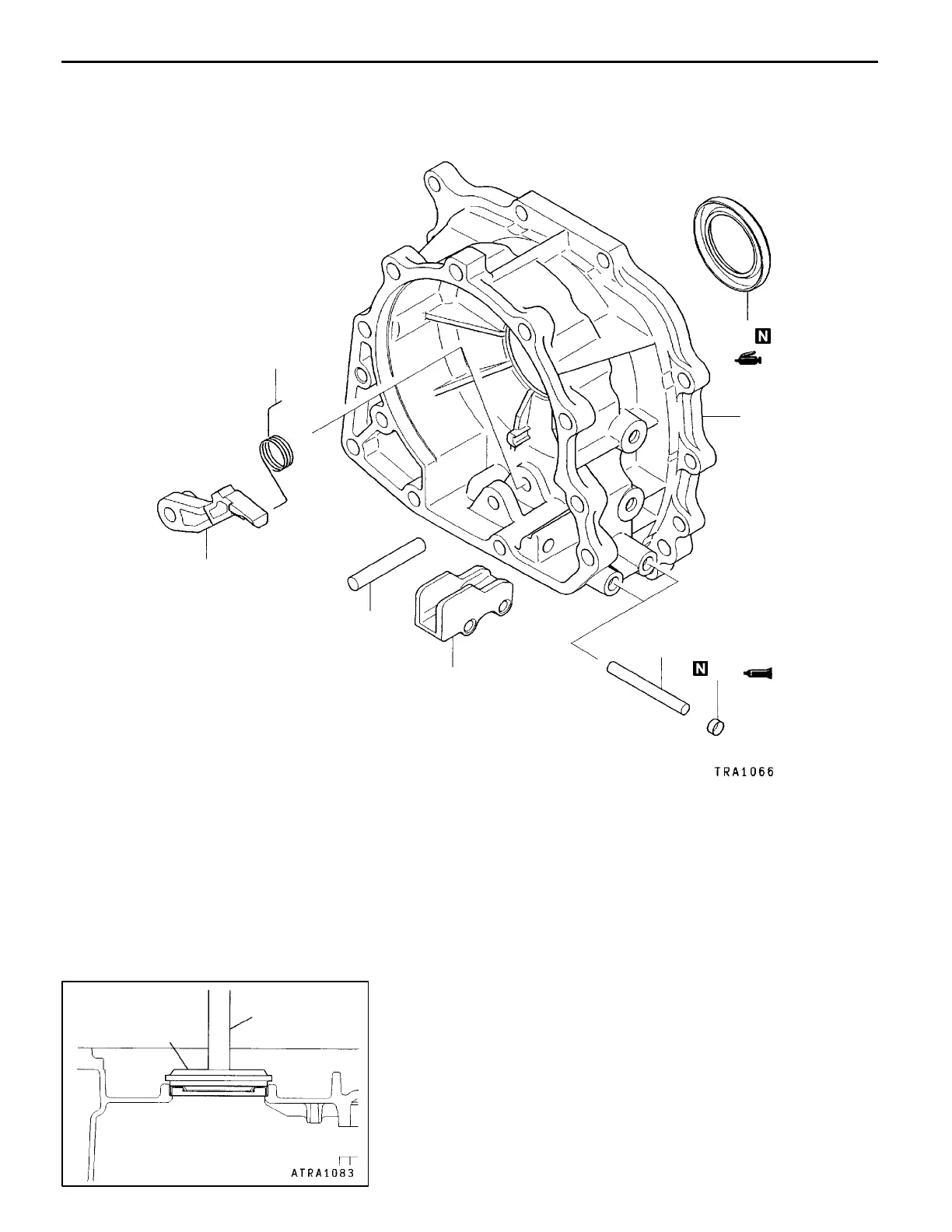

4. TRANSFER CASE ADAPTER
DISASSEMBLY AND ASSEMBLY
1
2
3
4
5
6
7
8
Disassembly steps
1. Parking sprag shaft
"
C
A 2. Parking sprag spring
3. Parking sprag
"
B
A 4. Sealing cap
5. Parking roller support shaft
6. Parking roller support
"
A
A 7. Oil seal
8. Transfer case adapter
ASSEMBLY SERVICE POINTS
"
A
A
OIL SEAL INSTALLATION
Use the special tools to install the oil seal.
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
MB990929
MB990938
