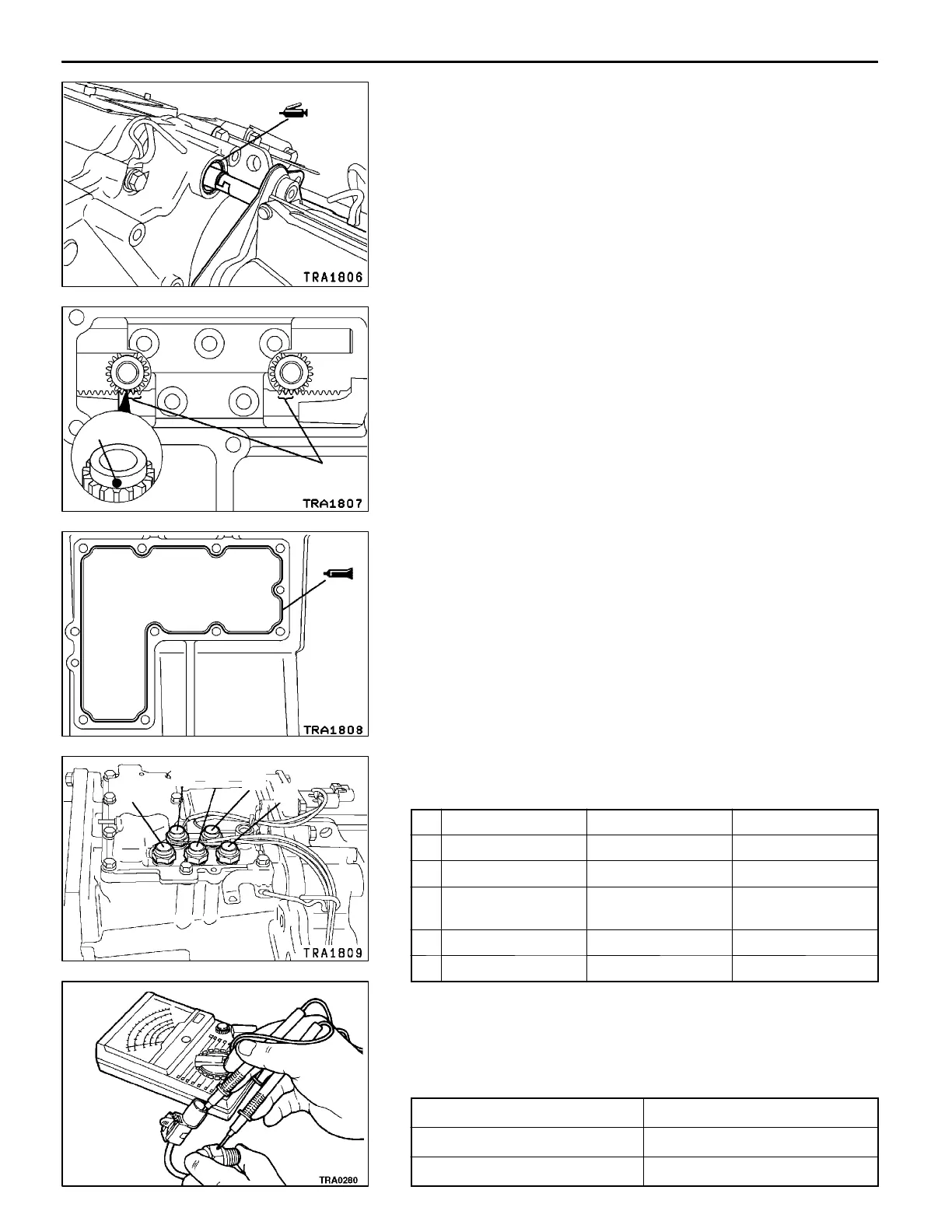

V5A51 -
Transfer
23E-15-11
"
T
A
MAIN SHIFT RAIL / SHIFT ACTUATOR
INSTALLATION
1. Apply grease to the O-ring.
Specified grease:
MITSUBISHI genuine grease part No. 0101011 or
equivalent
2. Combine the main shift rail key with actuator key an d
insert them in t he transfer case.
"
U
A
SHIFT RAIL DRIVE GEAR INSTALLATION
Install the shift rail drive gear with its marked tooth in mesh
with the third gear groove of each shift rail.
"
V
A
TRANSFER CASE COVER INSTALLATION
Apply sealant to the illustrated position of the transfer case
cover.
Specified sealant:
MITSUBISHI genuine sealant part No. MD997740 or
equivalent
Caution
D
Squeeze the sealant out evenly to make sure that
it is not broken or excessively supplied.
"
W
A
SWITCH INSTALLATION
Install t he switches in the right positions.
Switch name
Tube color Connector color
A 4LLC switch Black Brown
B 2WD switch Black Black
C Center differential
lock switch
Blue Brown
D 4H switch Blue White
E 2-4WD switch Blue Black
INSPECTION
SWITCHES
Check for the continuity between the connector terminal and
switch body. Replace the switch if found faulty.
Switch state Continuity
Switch end pressed No
Switch end released Yes
AddedPWEE8920-I
