Low/reverse Annulus Gear
23E-8-2
"
B
A

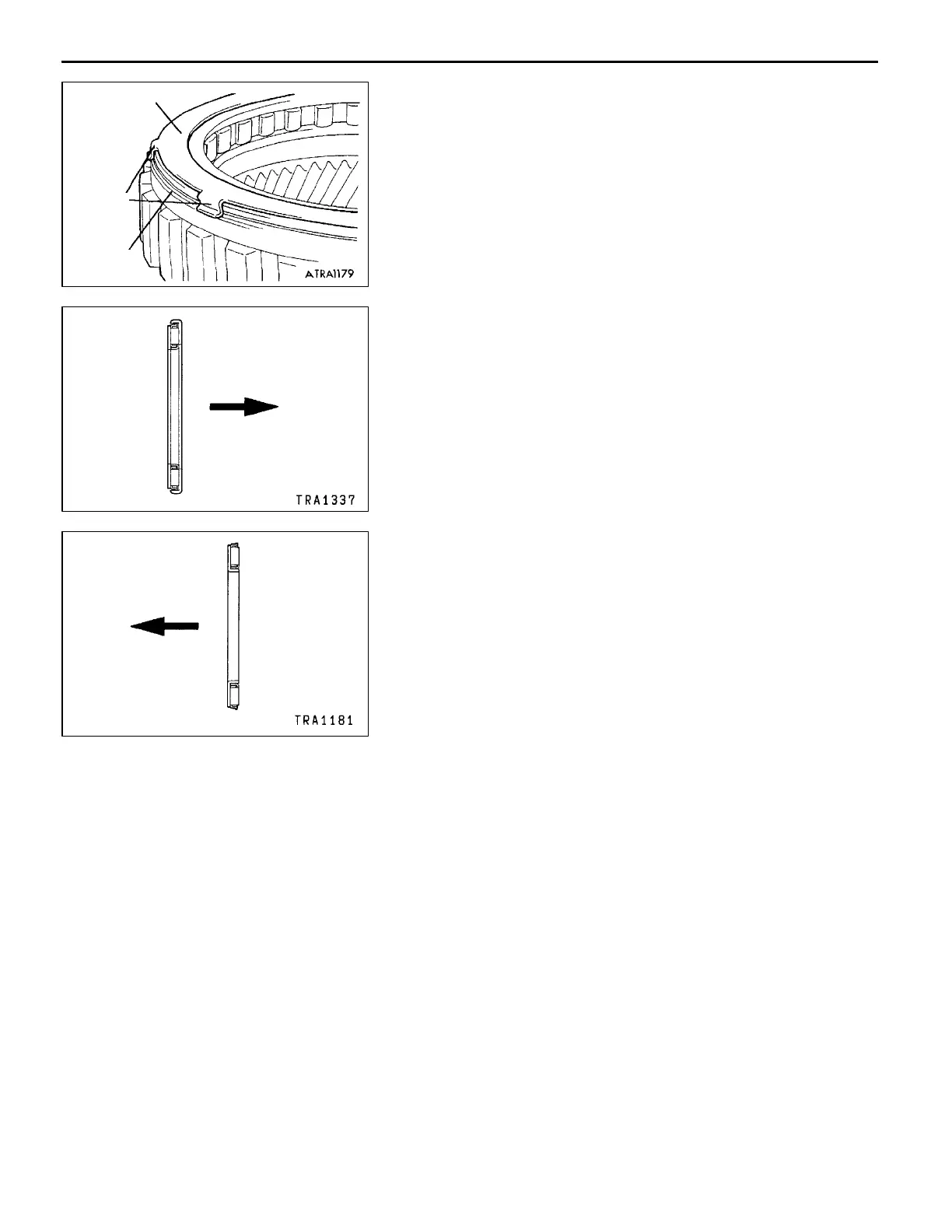

STOPPER PLATE INSTALLATION
Install the stopper plate onto the low/reverse annulus gear.
Make sure that the stopper plate claws are securely engaged
in the annulus gear groove.
"
C
A
THRUST BEARING NO.6 INSTALLATION
Apply Vaseline or petrolatum jelly on the thrust bearing No.6,
and then install on the output planetary carrier.
Caution
D
Take care not to mistake the thrust bearing No.6
mounting direction.
"
D
A
THRUST BEARING NO.5 INSTALLATION
Apply Vaseline or petrolatum jelly on the thrust bearing No.5,
and then install on the overdrive planetary carrier.
Caution
D
Take care not to mistake the thrust bearing No.5
mounting direction.
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
Stopper
plate
Claw
Groove
Output planetary
carrier side
Overdrive
planetary
carrier side
