2-4WD Shift Rail and H-L Shift Rail
23E-23-1

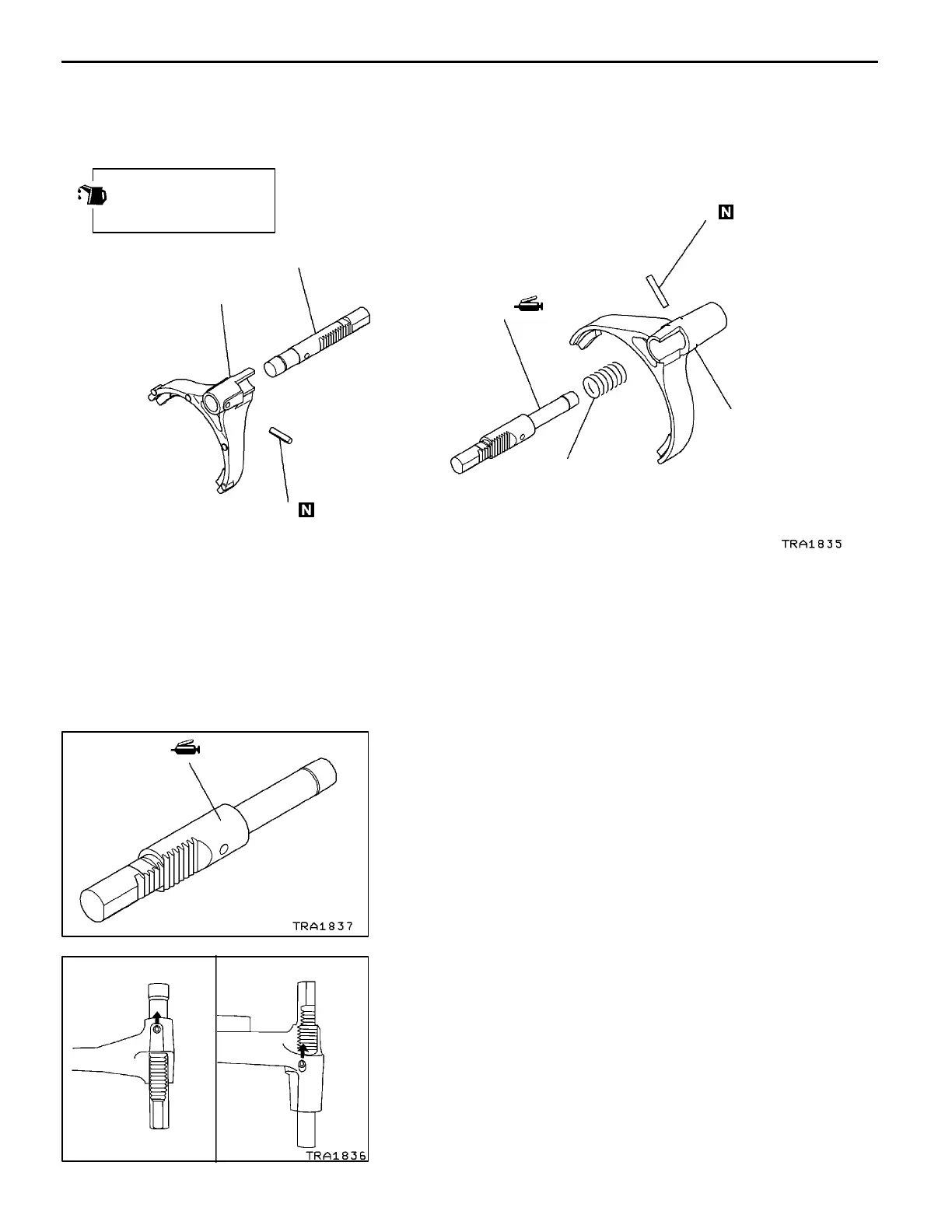

23. 2-4WD SHIFT RAIL AND H-L SHIFT RAIL
DISASSEMBLY AND ASSEMBLY
2
3
4
6
7
Apply gear oil to all
moving parts before
installation.
1
5
Disassembly steps
"
B
A 1. Spring pin
"
A
A 2. 2-4WD shift fork
3. Spring
"
A
A 4. 2-4WD shift rail
"
B
A 5. Spring pin
"
A
A 6. H-L shift fork
"
A
A 7. H-L shift rail
ASSEMBLY SERVICE POINTS
"
A
A
SHIFT FORK / SHIFT RAIL INSTALLATION
Apply grease to the outer periphery of the shift fork mounting
portion of the shift rail and then assemble the shift fork and
shift rail.
Specified grease:
Mitsubishi genuine grease part No. 0101011 or
equivalent
"
B
A
SPRING PIN INSTALLATION
Install the spring pin with its split toward the forward end
of the transfer.
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
H-L shift rail 2-4WD shift rail
