Mitsubishi V5A51 User Manual

V5A51 -
General Information
23E-0-5

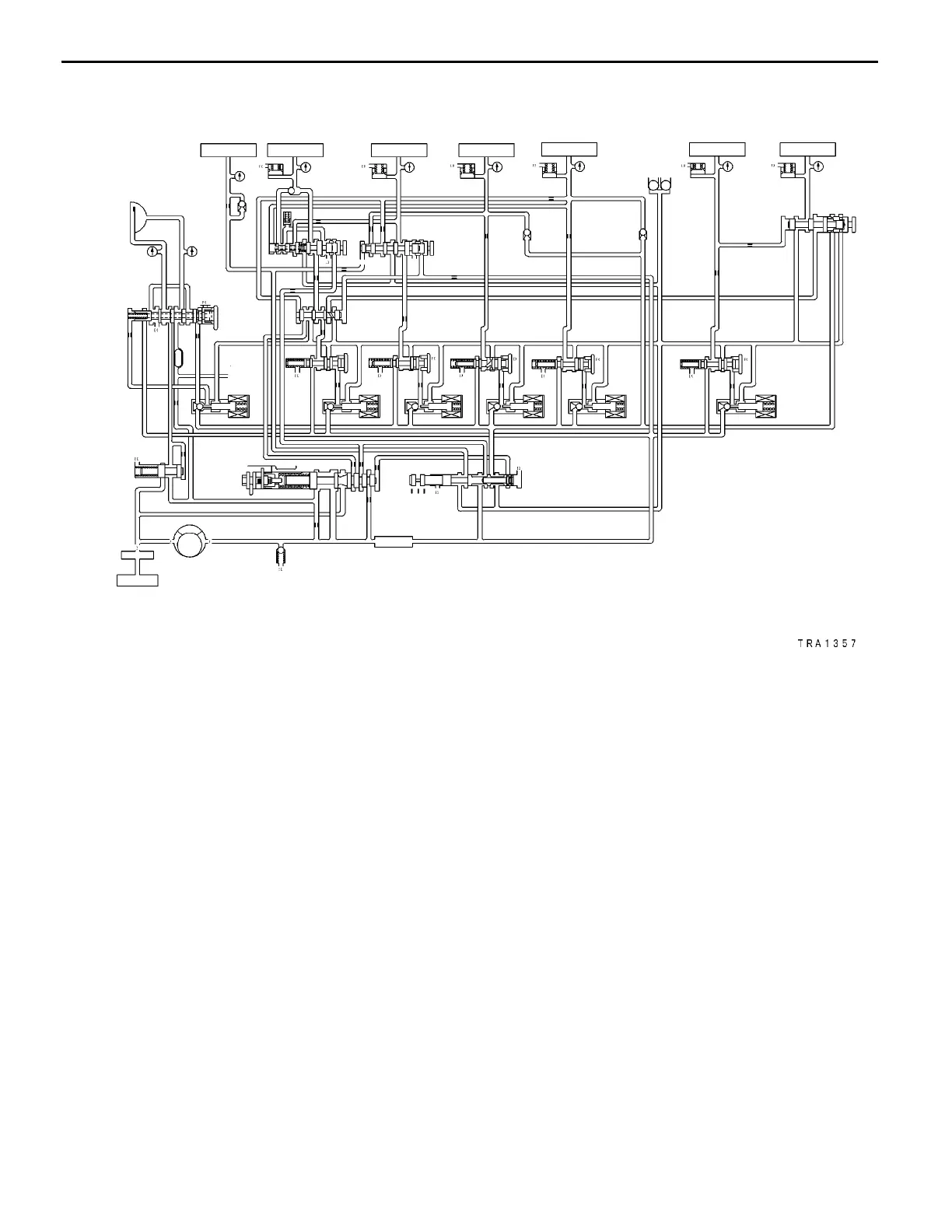

HYDRAULIC CONTROL SYSTEM
12 3 4 5
6
7
8
9
10
11
12
13
14
15
16
17 18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1. Reverse clutch
2. Low/reverse brake
3. Second brake
4. Underdrive clutch
5. Overdrive clutch
6. Torque converter clutch
7. Fail-safe valve A
8. Fail-safe valve B
9. Torque converter clutch control valve
10. Switching valve
11. Cooler
12. Low-reverse brake pressure control
valve
13. Second brake pressure control valve
14. Underdrive clutch pressure control
valve
15. Overdrive clutch pressure control
valve
16. Torque converter clutch control sole-
noid valve
17. Low-reverse brake solenoid valve
18. Second brake solenoid valve
19. Underdrive clutch solenoid valve
20. Overdrive clutch solenoid valve
21. Torque converter pressure control
valve
22. Regulator valve
23. Manual valve
24. Oil filter
25. Oil pan
26. Oil pump
27. Oil strainer
28. Reduction brake
29. Direct clutch
30. Fail-safe valve C
31. Reduction brake pressure control
valve
32. Reduction brake solenoid valve
AddedPWEE8920-I
