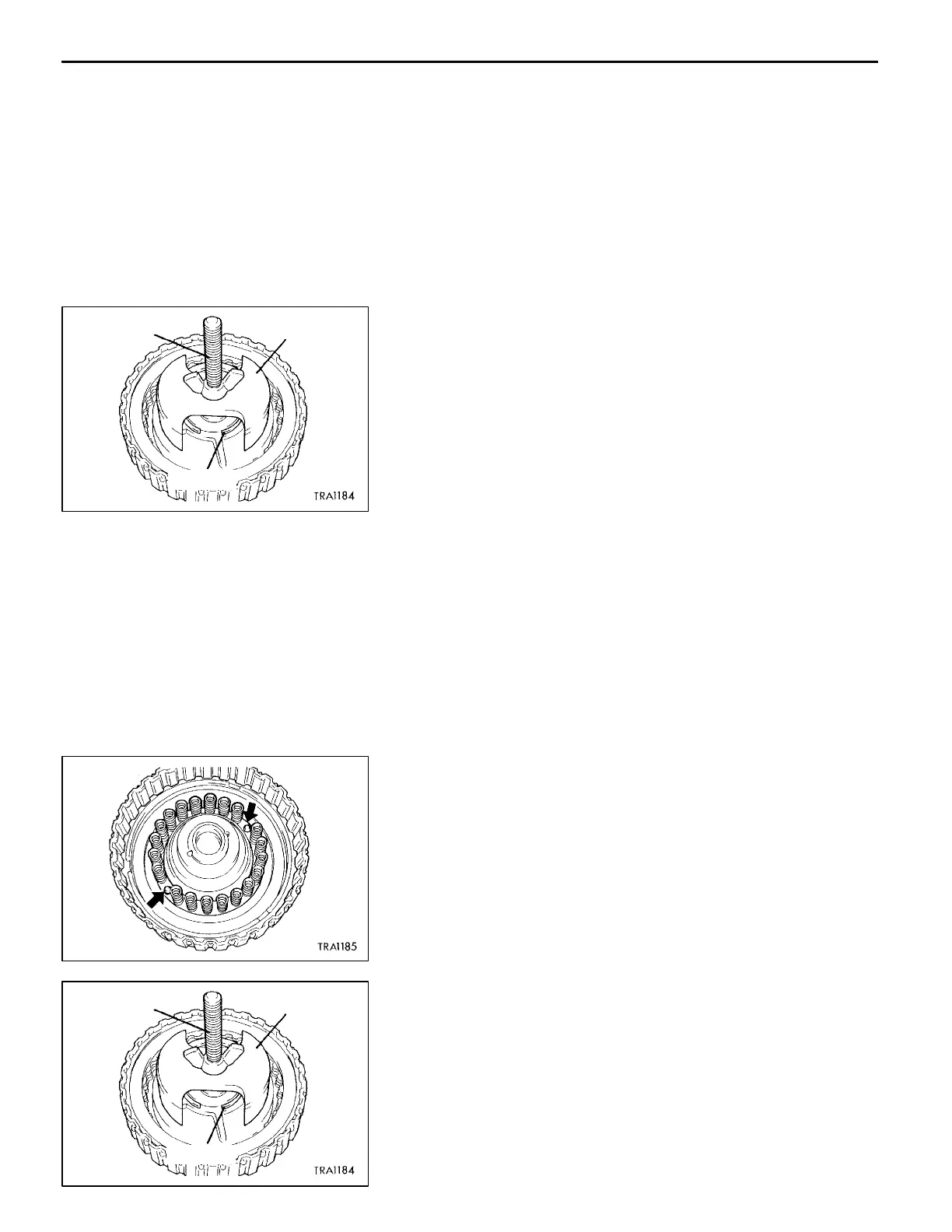

V5A51 -
Underdrive Clutch
23E-10-2
Disassembly steps
"
E
A 1. Snap ring
"
D
A 2. Reaction plate
"
D
A 3. Clutch disc
"
D
A 4. Clutch plate
A
A
""
C
A 5. Snap ring
6. Snap retainer
"
A
A 7. D-ring
"
B
A 8. Return spring
9. Underdrive clutch piston
"
A
A 10. D-ring
"
A
A 11. D-ring
"
A
A 12. D-ring
13. Underdrive clutch retainer
DISASSEMBLY SERVICE POINT
A
A
"
SNAP RING REMOVAL
1. Set the special tools as shown in the illustration.
2. Compress the return spring, and remove the snap ring.
ASSEMBLY SERVICE POINTS
"
A
A
D-RING INSTALLATION
1. Apply ATF to the D-ring.
2. Install the D-ring in t he groove of t he underdrive clutch
retainer an d spring retainer. Make sure that the D-ring
is not twisted or damaged when installing.
"
B
A
RETURN SPRING INSTALLATION
Align the two return spring holes with the two projections
on the underdrive clutch piston, and then assemble the return
springs.
"
C
A
SNAP RING INSTALLATION
1. Set the special tools as shown in the illustration.
2. Compress the return spring, and install the snap ring.
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
MD998924
MD998907
Snap ring
MD998924
MD998907
Snap ring
