V5A51 -
Transfer Case Plate
23E-16-1

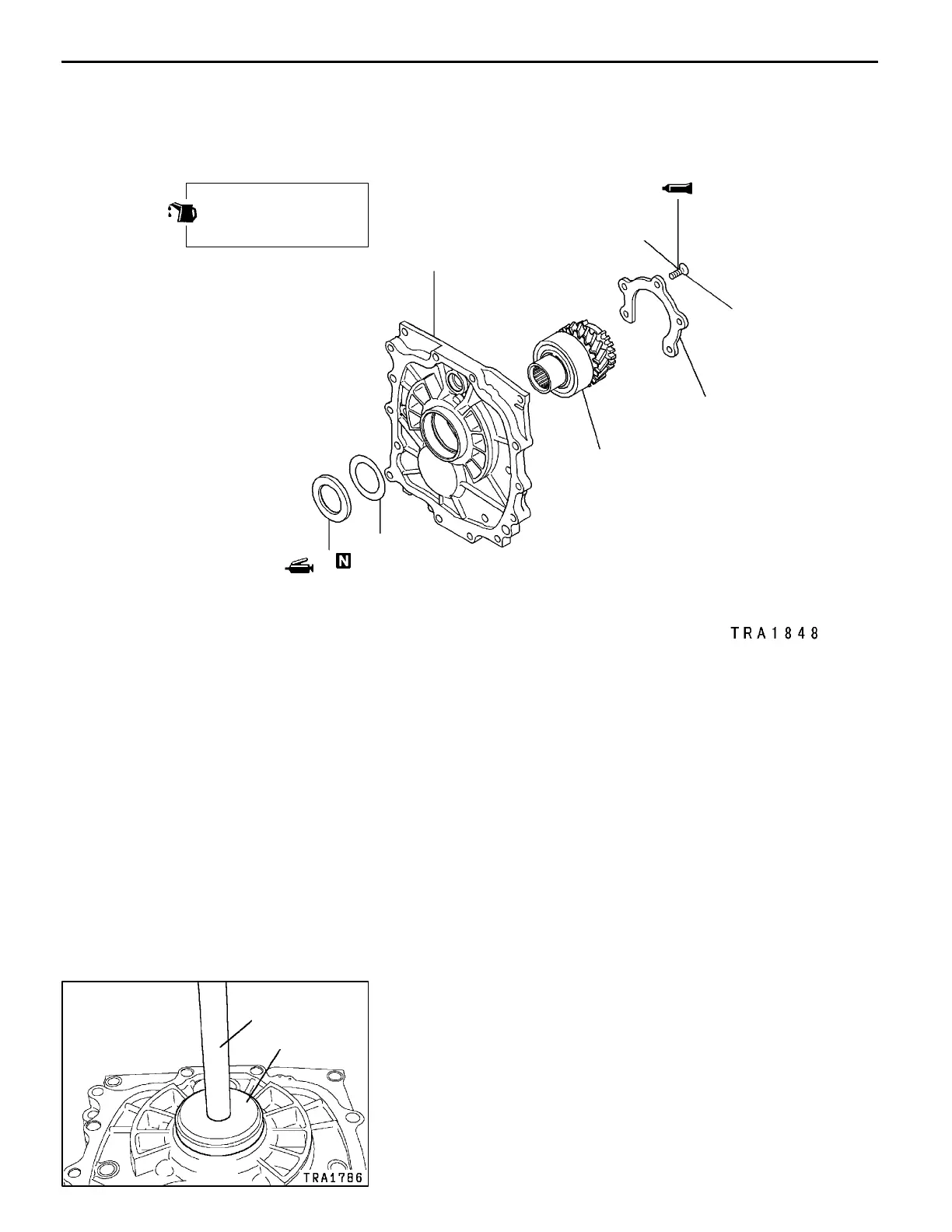

16. TRANSFER CASE PLATE
DISASSEMBLY AND ASSEMBLY
20
±
2Nm
1
2
3
4
5
6
Apply gear oil to all
moving parts before
installation.
Disassembly steps
"
B
A 1. Bolt
2. Bearing retainer
3. Transfer input gear
"
A
A 4. Oil seal
5. Baffle plate
6. Transfer case plate
ASSEMBLY SERVICE POINTS
"
A
A
OIL SEAL INSTALLATION
1. Use the special tool to install the oil seal.
2. Apply grease to the lip of the oil seal.
Specified grease:
MITSUBISHI genuine grease part No. 0101011 or
equivalent
AddedPWEE8920-I
