V5A51 -
Transfer
23E-15-10

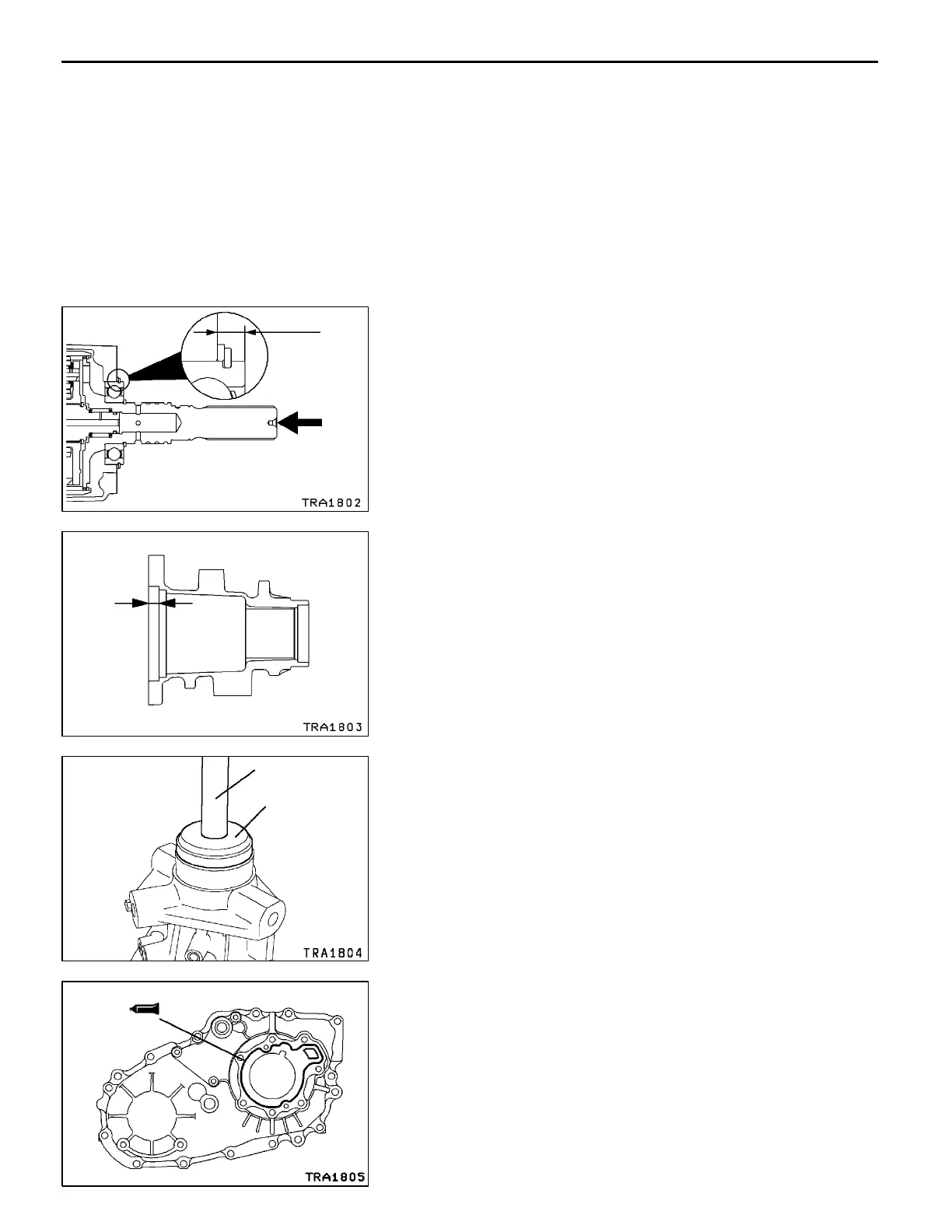

4. Remove the snap ring from the bearing groove of the
rear output shaft, install the selected snap ring, and
reinstall the removed snap ring in the bearing groove
of the rear output shaft.
"
Q
A
SPACER INSTALLATION
1. With the rear output shaft pressed toward the chain cover,
measure the projection of th e bearing from the chain
cover.
Caution
D
Measure the projection with the snap ring
installed.
2. Measure the dimension of the rear cover concave portion
at the illustrated position.
3. Subtract the measured value in Step 1 from the measured
value in Step 2 to calculate the clearance between the
bearing a nd rear cover. Select a proper spacer so that
the clearance will have the standard value.
Standard value: 0 - 0.12 mm
"
R
A
OIL SEAL INSTALLATION
1. Use the special tools to install the oil seal in the rear
cover.
2. Apply grease to the lip of the oil seal.
Specified grease:
MITSUBISHI genuine grease part No. 0101011 or
equivalent
"
S
A
REAR COVER INSTALLATION
Apply sealant to the illustrated position of the chain cover.
Specified sealant:
MITSUBISHI genuine sealant part No. MD997740 or
equivalent
Caution
D
Squeeze the sealant out evenly to make sure that
it is not broken or excessively supplied.
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
Projection
Concave
portion
MB990938
MB990932
