V5A51 -
Direct Clutch
23E-13-3
"
D
A

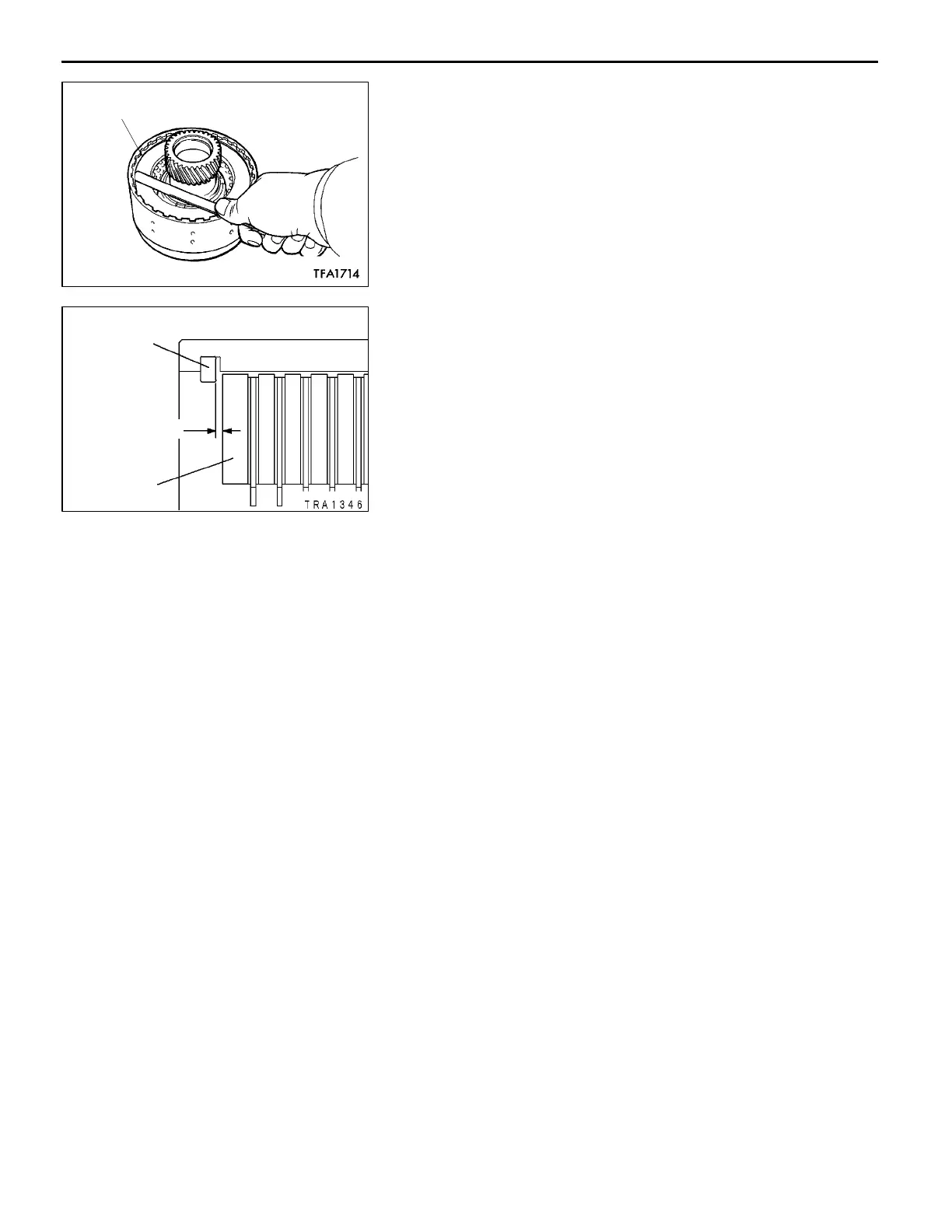

SNAP RING INSTALLATION
1. Install the snap ring in the direct clutch retainer groove.
2. Press the entire periphery of the reaction plate with a
force of 49 N, and confirm that the clearance between
the snap ring a nd reaction plate (direct clutch end play)
is the standard value. If the clearance is not at the standard
value, select a suitable snap ring and adjust so that the
clearance is within the standard value.
Standard value: 1.0 - 1.2 mm
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
Snap ring
Snap ring
Standard value
Reaction
plate
