Mitsubishi V5A51 User Manual

V5A51 -
Transfer
23E-15-9

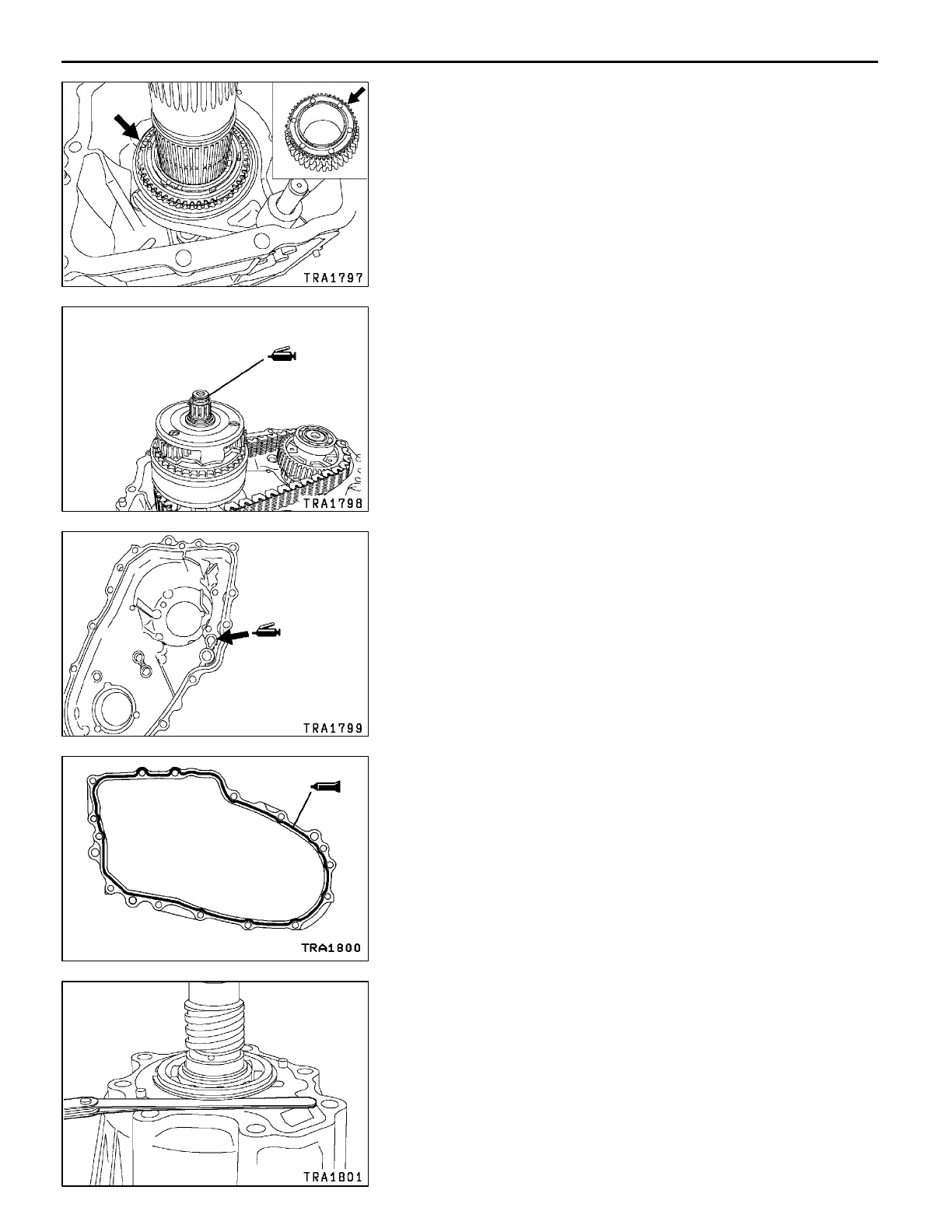

2. Install the drive sprocket so that its illustrated holes will
match the projecting portions of the synchronizer cone.
"
N
A
REAR OUTPUT SHAFT INSTALLATION
Apply grease to the O-ring at the illustrated position and install
the rear output shaft.
Specified grease:
MITSUBISHI genuine grease part No. 0101011 or
equivalent
"
O
A
CHAIN COVER INSTALLATION
1. Apply grease to the indicated 2-4WD shift rail inserting
portion.
Specified grease:
MITSUBISHI genuine grease part No. 0101011 or
equivalent
2. Apply a bead of sealant to the illustrated position of the
chain cover.
Specified sealant:
MITSUBISHI genuine sealant part No. MD997740
or equivalent
Caution
D
Squeeze the sealant out evenly to make sure that
it is not broken or excessively supplied.
"
P
A
SNAP RING ISNTALLATION
1. Install the snap ring in the bearing groove of the rear
output shaft.
2. With the rear output shaft pressed against the chain cover,
measure the clearance between the chain cover and snap
ring.
3. Select a snap ring whose thickness is the dimension of
the measured clearance plus the standard value.
Standard value: 0.12 - 0.24 mm
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
