V5A51 -

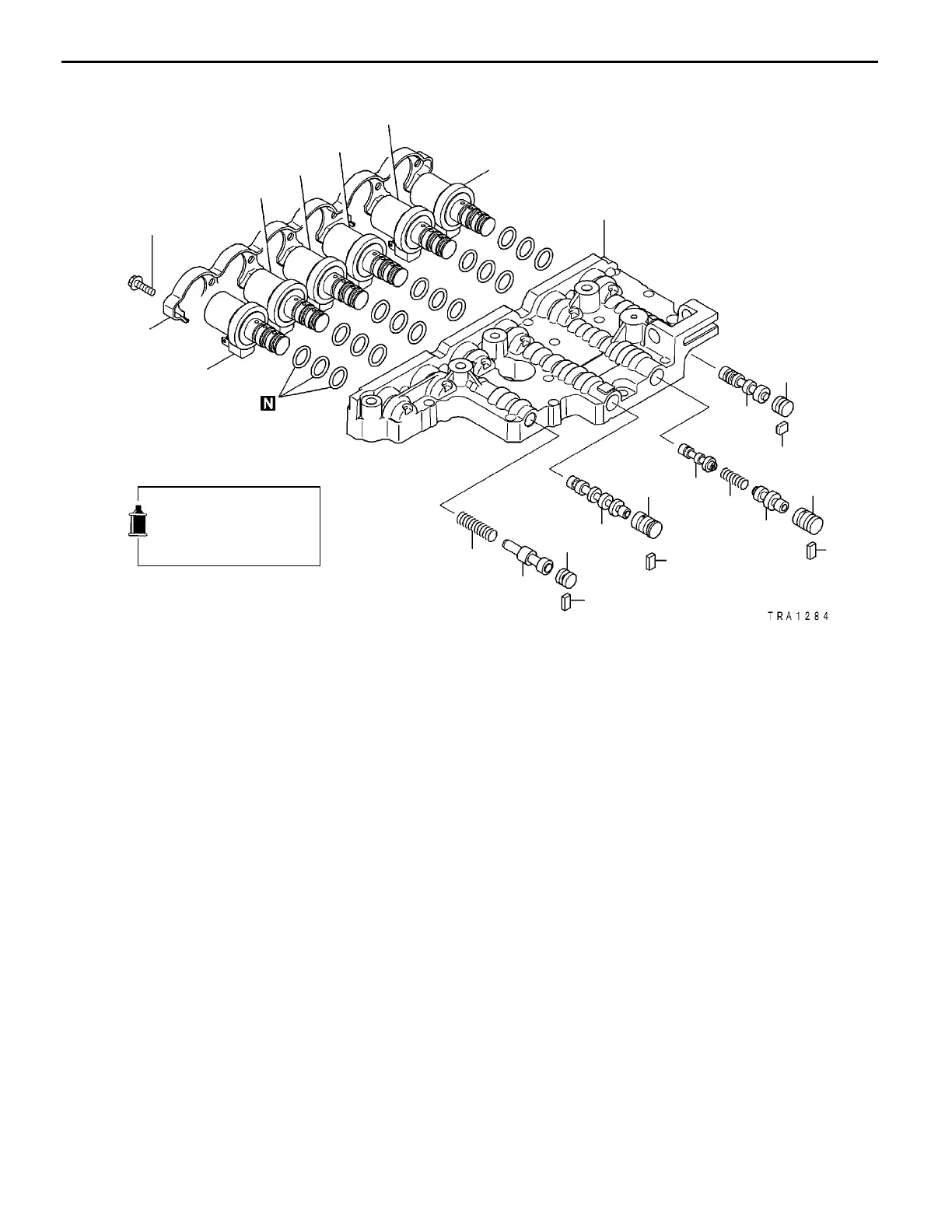

Valve Body
23E-11-2
16
17
19
18
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
38
6
±
1Nm
Apply automatic
transmission fluid to
all moving parts
before installation.
37
Disassembly steps
16. Solenoid support
A
A
""
A
A 17. Low/reverse brake solenoid valve
A
A
""
A
A 18. Reduction brake solenoid valve
A
A
""
A
A 19. Second brake solenoid valve
A
A
""
A
A 20. Underdrive clutch solenoid valve
A
A
""
A
A 21. Overdrive clutch solenoid valve
A
A
""
A
A 22. Torque converter clutch control sole-
noid valve
23. Stopper plate
24. Stopper plug
25. Switching valve
26. Stopper plate
27. Fail-safe valve A sleeve
28. Fail-safe valve A
2
29. Fail-safe valve A spring
30. Fail-safe valve A
1
31. Stopper plate
32. Fail-safe valve B sleeve
33. Fail-safe valve B
34. Stopper plate
35. Stopper plug
36. Torque converter pressure control
valve
37. Torque converter pressure control
valve spring
38. Upper valve body
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
