Mitsubishi V5A51 User Manual

V5A51 -
Valve Body
23E-11-3
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
73
11
±
1Nm
Apply automatic
transmission fluid to
all moving parts
before installation.
65
66
67
68
69
70
71
72
11
±
1Nm
74

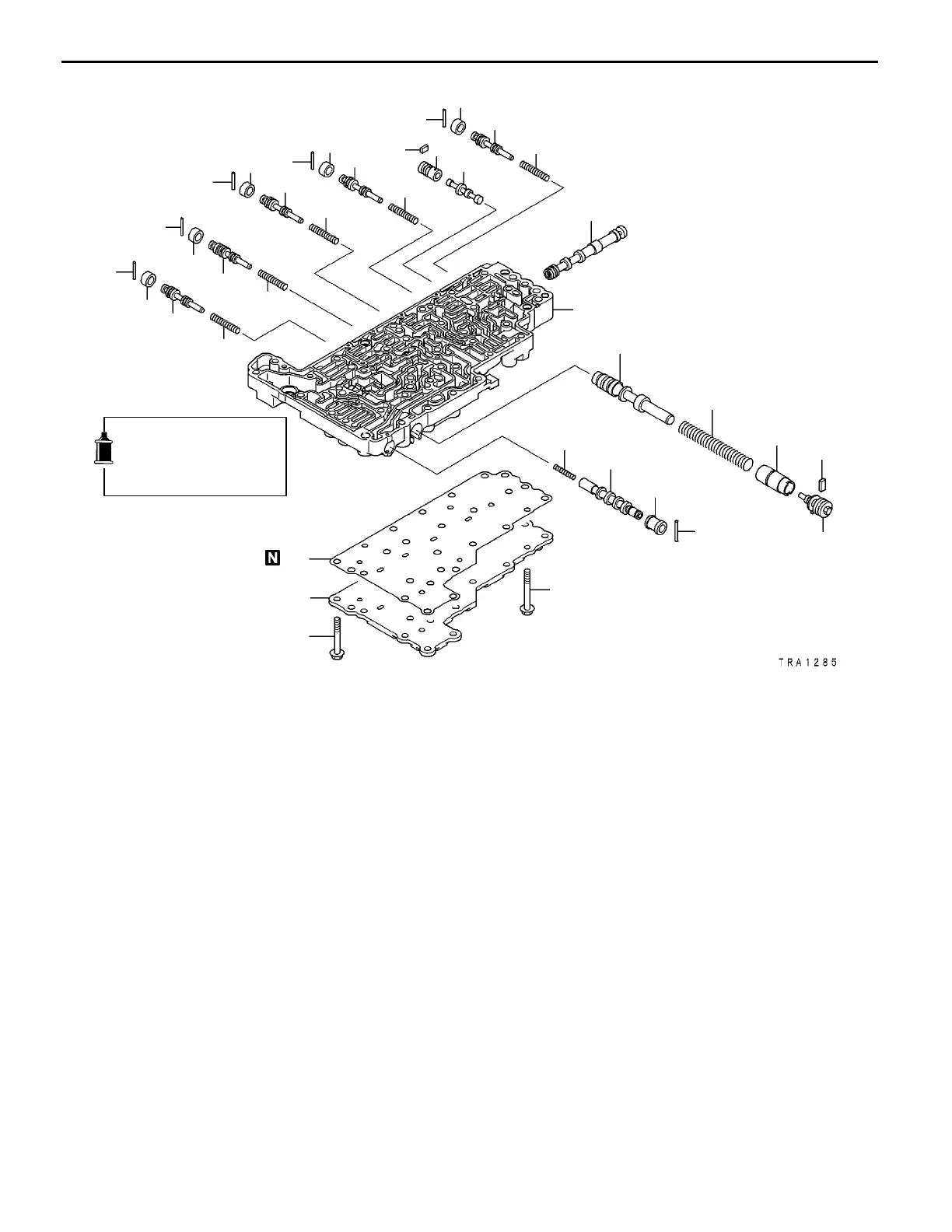

Disassembly steps
39. Manual valve
40. Roller
41. Low/reverse brake pressure control
valve sleeve
42. Low/reverse brake pressure control
valve
43. Low/reverse brake pressure control
valve spring
44. Stopper plate
45. Fail-safe valve C sleeve
46. Fail-safe valve C
47. Roller
48. Reduction brake pressure control
valve sleeve
49. Reduction brake pressure control
valve
50. Reduction brake pressure control
valve spring
51. Roller
52. Second brake pressure control valve
sleeve
53. Second brake pressure control valve
54. Second brake pressure control valve
spring
55. Roller
56. Underdrive clutch pressure control
valve sleeve
57. Underdrive clutch pressure control
valve
58. Underdrive clutch pressure control
valve spring
59. Roller
60. Overdrive clutch pressure control
valve sleeve
61. Overdrive clutch pressure control
valve
62. Overdrive clutch pressure control
valve spring
63. Stopper plate
64. Regulator valve adjusting screw
65. Regulator valve sleeve
66. Regulator valve spring
67. Regulator valve
68. Roller
69. Torque converter clutch control valve
sleeve
70. Torque converter clutch control valve
71. Torque converter clutch control valve
spring
72. Cover
73. Cover gasket
74. Lower valve body
