Mitsubishi V5A51 User Manual

V5A51 -
Transmission
23E-5-2
16
17
18
19
20
21
22
24
23 25
26
27
28
29
30
31
32
33
37
42
36
44
19
19
19
Apply automatic
transmission fluid to
all moving parts
before installation.
34
31
32
33
37
43
34
35
38
41
40
39

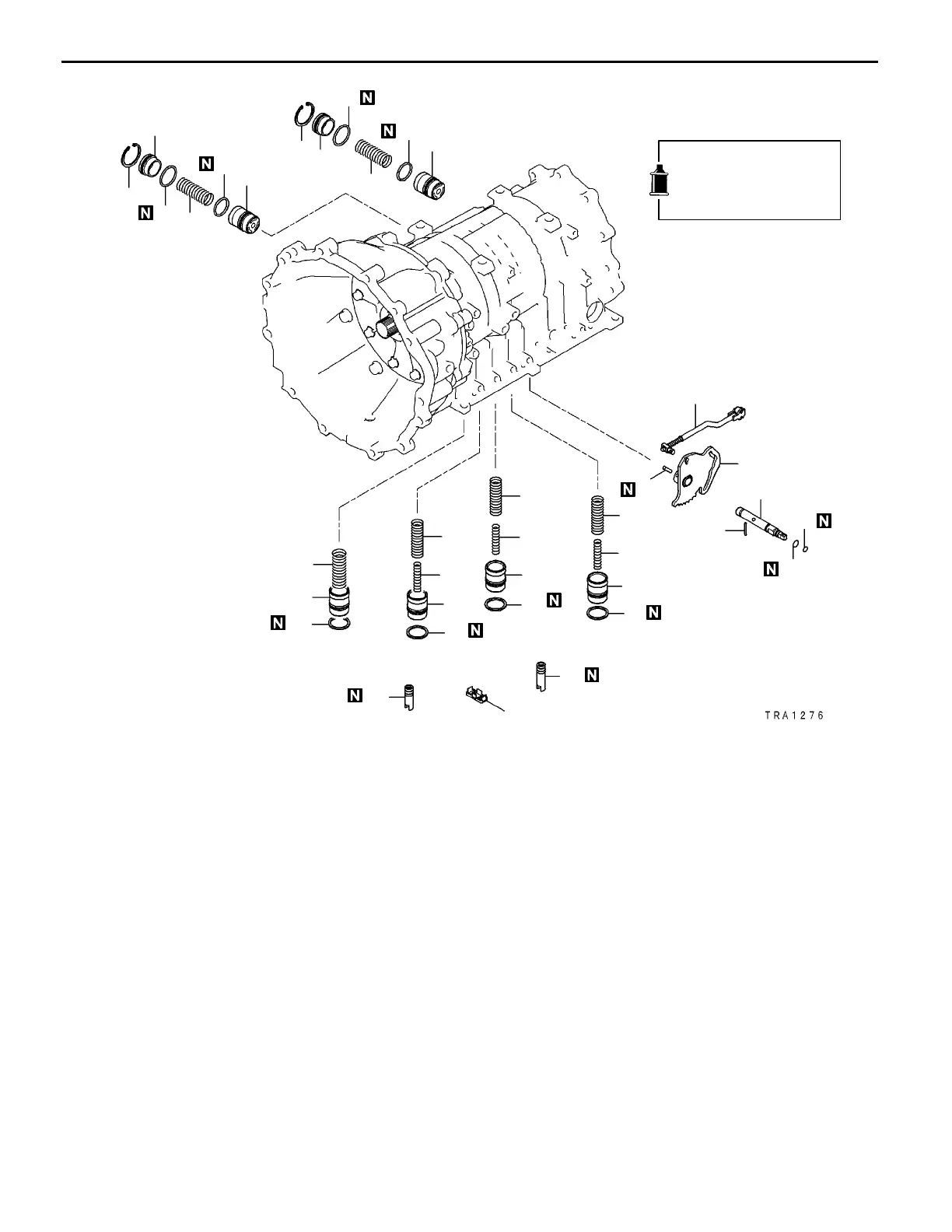

16. Oil seal
17. Oil seal
18. Oil strainer
19. Seal ring
20. Accumulator piston
(for overdrive clutch)
21. Accumulator spring
22. Accumulator piston
(for second brake)
23. Inner spring
24. Outer spring
25. Accumulator piston
(for low/reverse brake)
26. Inner spring
27. Outer spring
28. Accumulator piston
(for underdrive clutch)
29. Inner spring
30. Outer spring
31. Snap ring
32. Accumulator cover
33. O-ring
34. Accumulator spring
35. Accumulator piston
(for reduction brake)
36. Accumulator piston
(for direct clutch)
37. Seal ring
38. Spring pin
39. Pin
40. Manual control shaft
41. O-ring
42. O-ring
43. Detent lever
44. Parking roller rod
AddedPWEE8920-I
