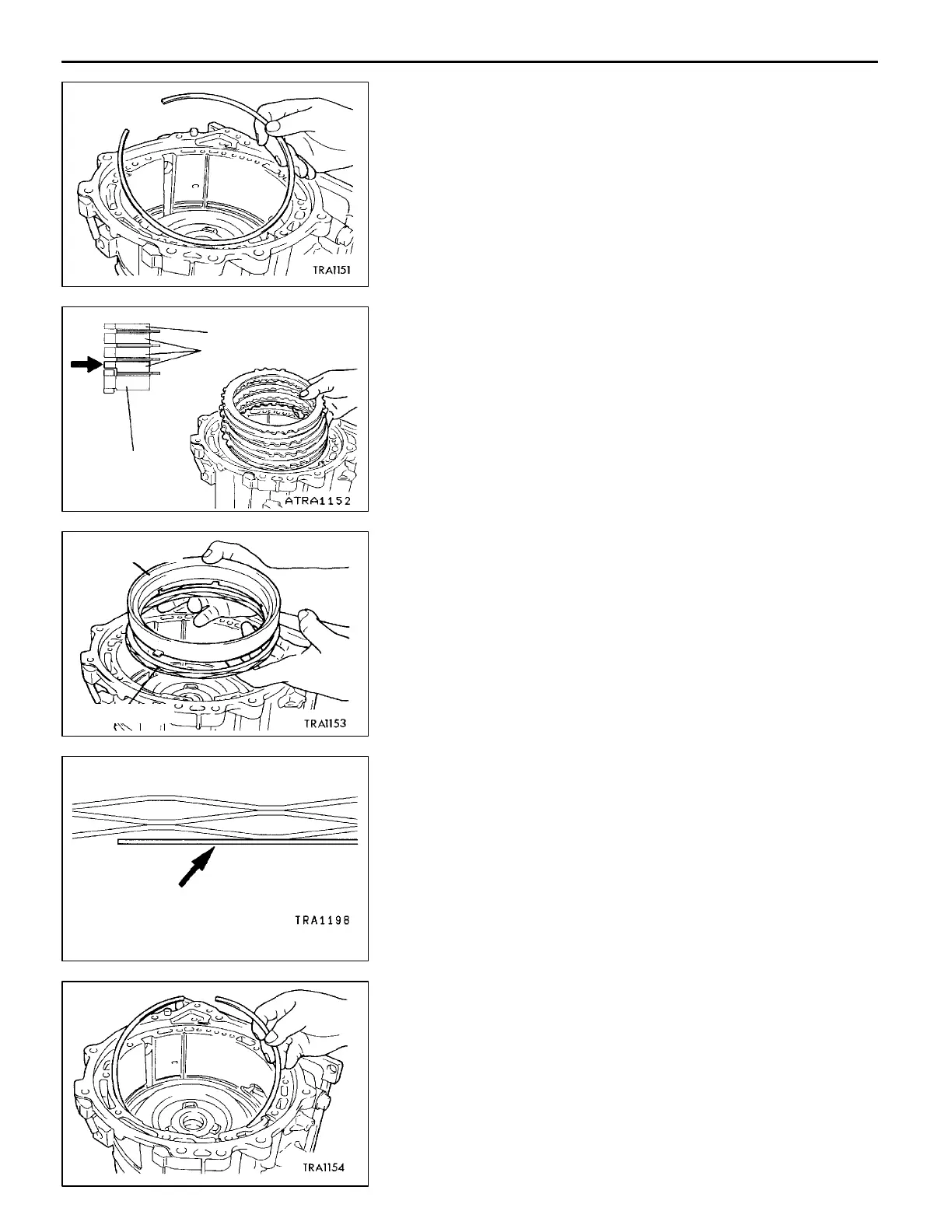

32. Install the snap ring selected in step 24 (5).
33. Install the brake discs, brake plates and pressure plate
selected in step 24 (9).
Caution
D
Take care not to mistake the brake plate (reaction
plate side) installation direction.
34. Install the return spring an d second brake.
Caution
D
Install the return spring so that the flat side faces
the back of the transmission.
35. Install the snap ring.
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
Pressure plate
Brake plate
Reaction
plate
Second brake
Return spring
Flat side
