Setup Mode Chapter Six: Embedded Web-Based GUI and Diagnostics
65
RS485 Comm Page – Monitor Mode
This page displays the Baud Rate and MacID settings for the RS485 MFC. In “Monitor Mode” you are able to
view this information as well as change it. Figure 19, below, shows a screen capture of the Configuration
Page in “Setup Mode.” Similar pages exist for the DeviceNet and Profibus G-Series Products.

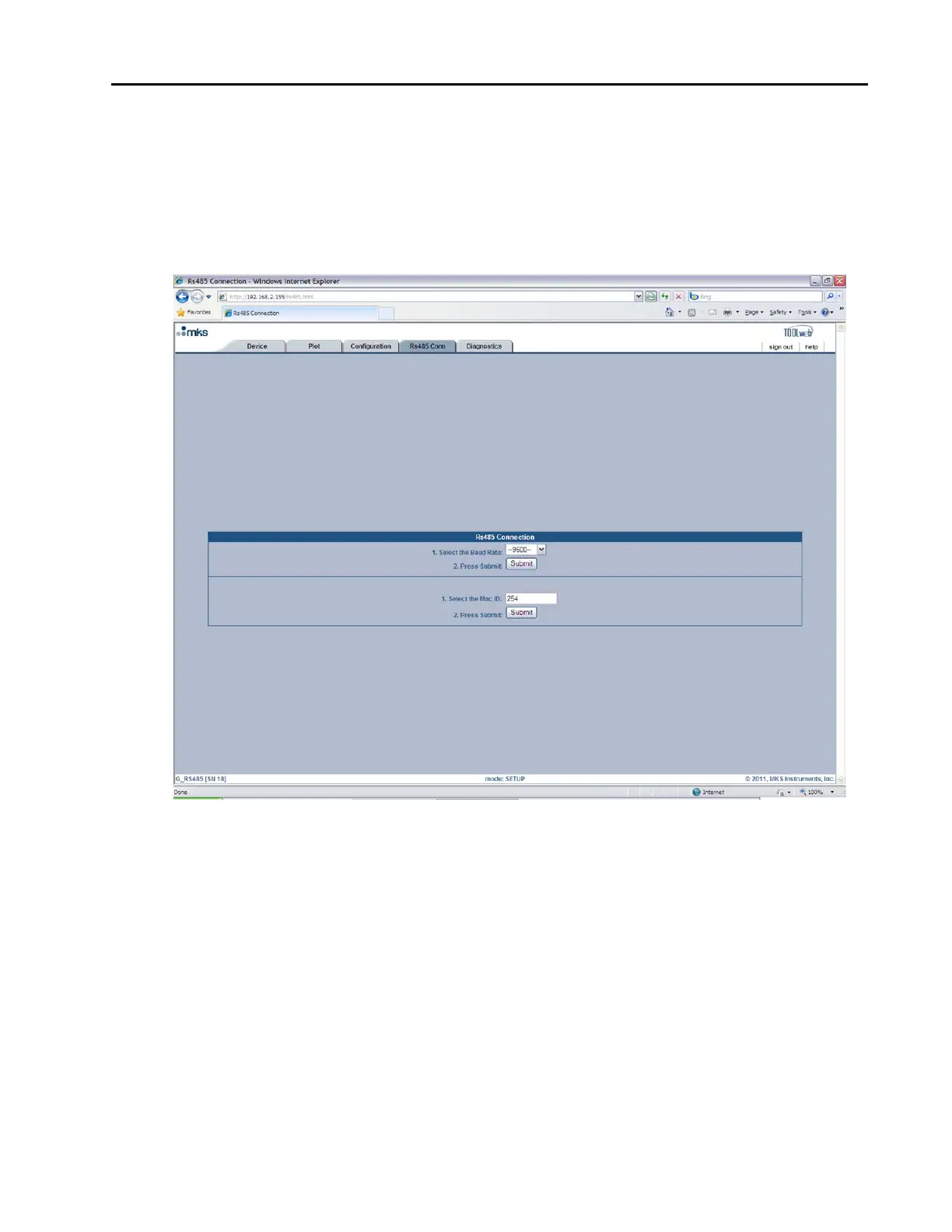

Figure 19: Embedded GUI, RS485 Comm Page in Setup Mode
