6.1.1 Input and Output Connector – P/N 06.00.507, P/N 06.00.508

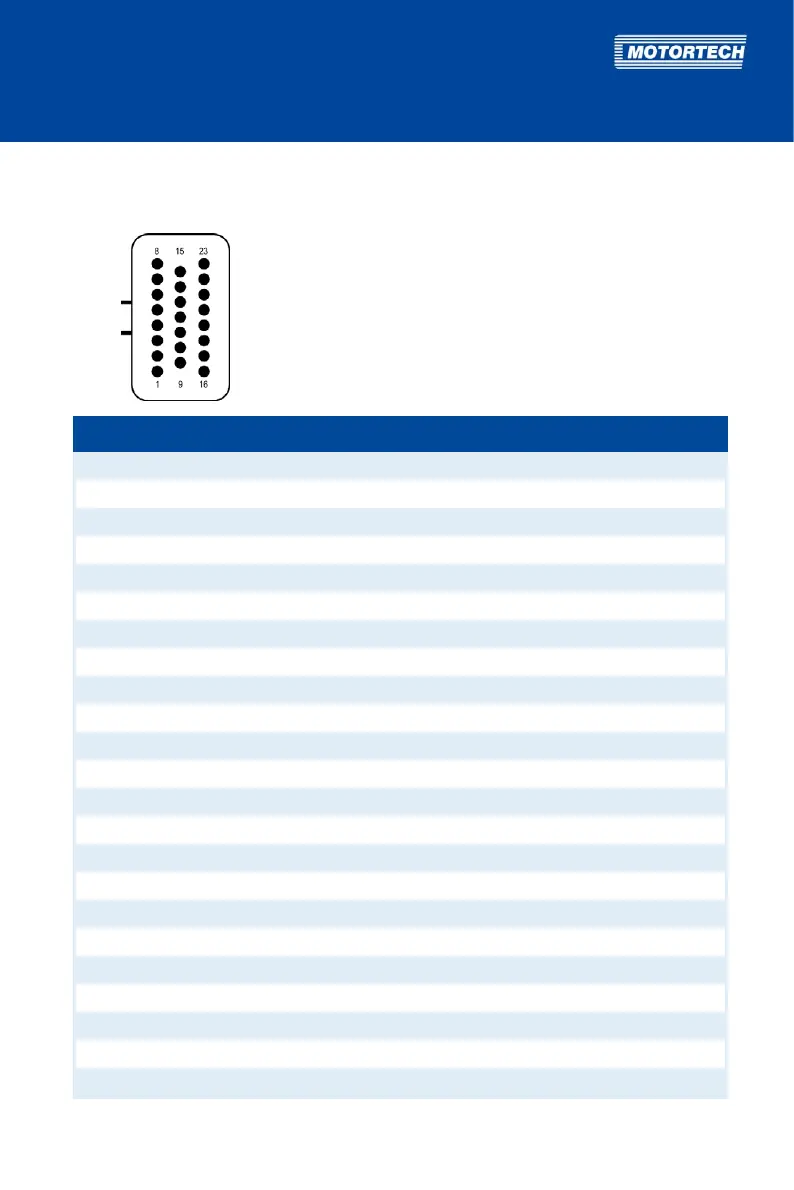

Input and output connector: left side of device, 23-pole, connector
Pin Pin assignment
1 Ignition output D
2 Ignition output C
3 Ignition output B
4 Ignition output A
5 Switch Go/NoGo
6 Not used
7 (+) 4-20 mA
8 Pickup signal
9 Ignition output E
10 Ground
11 Measuring lead (1:10)
12 (-) Supply voltage
13 (+) Supply voltage
14 Supply voltage pickup (24 V DC)
15 (-) 4-20 m
A
16 Ignition output F
17 Ignition output K
18 Ignition output L
19 Digital input (Switch A/B or Switch Start/Stop)
20 Not used
21 Not used
22 4-20 mA PWR
23 Pickup ground
