6 WIRING OF THE DEVICE
40 Rev. 01/2015

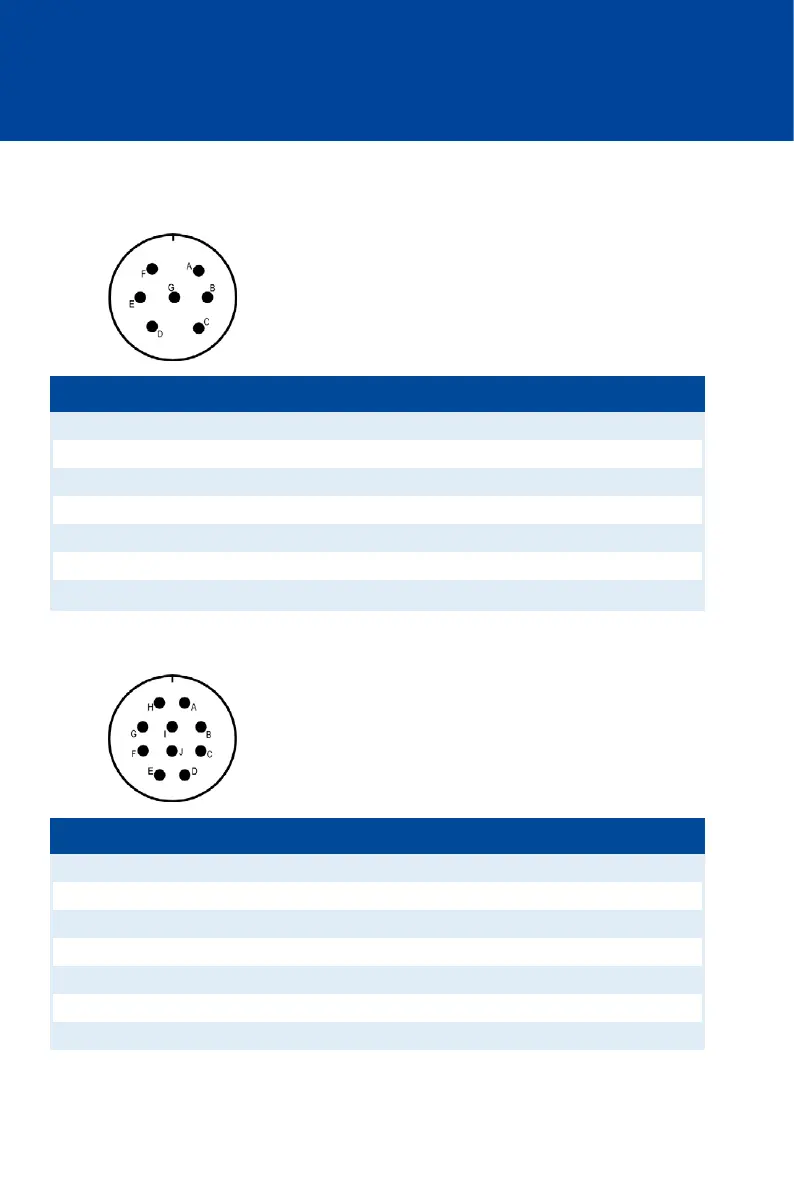

6.1.7 Input and Output Connector – P/N 06.00.516
Input connector: left front, 7-pole, connector
Pin Pin assignment
A Pickup signal
B Supply voltage pickup (8 V DC)
C Pickup ground
D Digital input (Switch A/B or Switch Start/Stop)
E (+) Supply voltage
F (-) Supply voltage
G Switch Go/NoGo
right side of device, 10-pole, connector
Pin Pin assignment
A Not used
B Not used
C (+) 4-20 mA
D Ground inputs
E (-) 4-20 m
A
F 4-20 mA PWR
G Not used
