Rev. 01/2015 39

Pole Pole assignment

H Not used

I Not used

J Not used

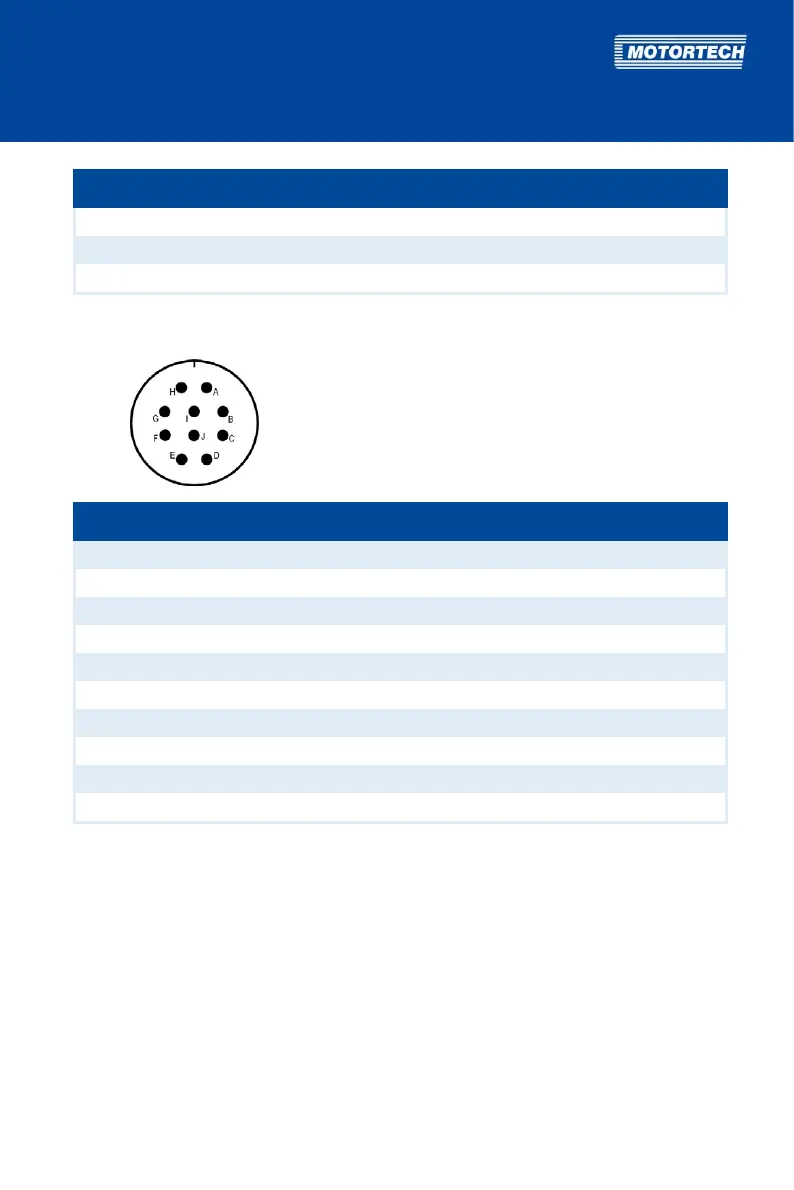

Output connector: right front, 10-pole, connector

Pin Pin assignment

A Ignition output A

B Ignition output B

C Ignition output C

D Ignition output D

E Ignition output E

F Ignition output F

G Measuring lead (1:1)

H Ignition output K

I Ignition output L

J Ground
