6 WIRING OF THE DEVICE
54 Rev. 01/2015
No 4-20 mA PWR terminal on P/N 06.00.550
The device type P/N 06.00.550 does not have a 4-20 mA PWR terminal.
Thus, this device type does not provide an auxiliary supply voltage for the
4-20 mA input.
6.1.15 Input Wiring – Pickup

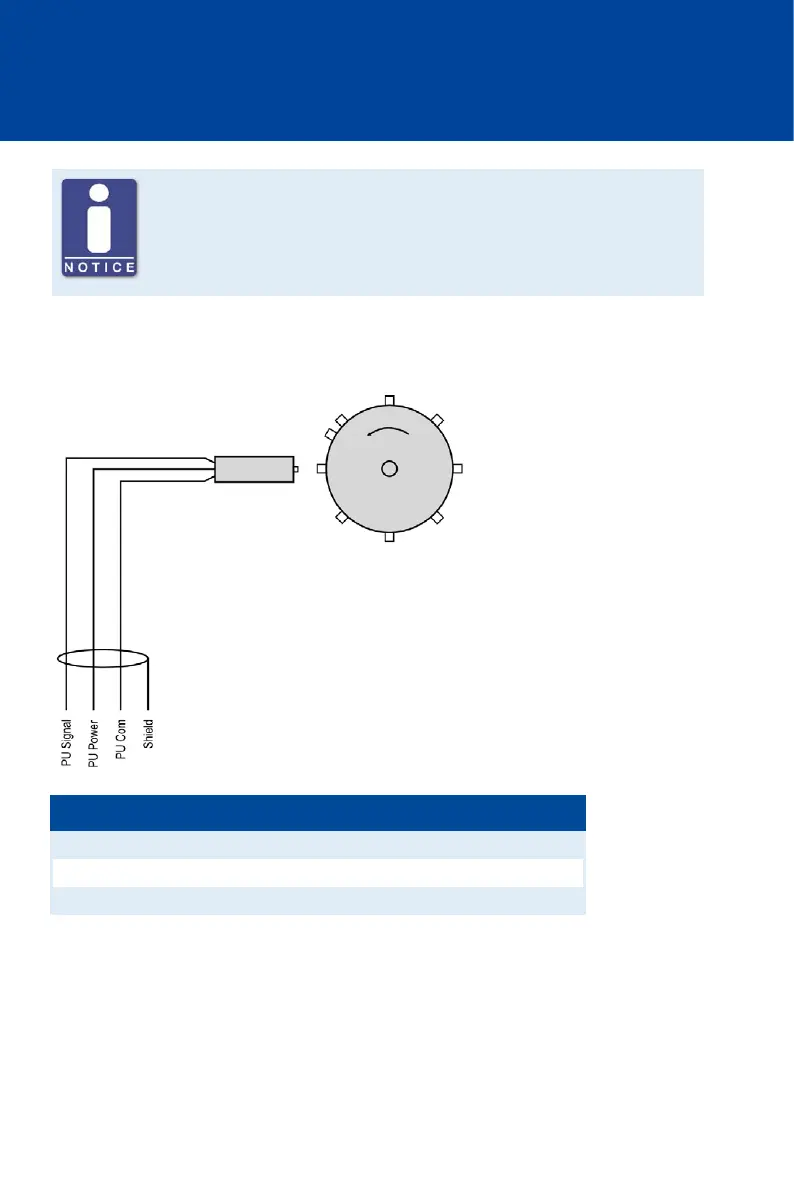

Example configuration (one active pickup with 8+1 trigger disc)
Designation Meaning
PU Signal Pickup signal
PU Power Supply voltage for pickup
PU Com Pickup ground
If wiring yourself, put the shield on the connector housing.
Connect passive (magnetic) pickup with plus to PU Signal and with minus to PU Com.
The recommended distance to the triggering is 0.75 mm to 1 mm (0.03" to 0.04") for MOTORTECH
pickups. Please note that additional fine-tuning is required for every pickup position due to the
different conditions of the engines.
