8 ADJUSTMENTS
88 Rev. 01/2015
Proceed as follows:

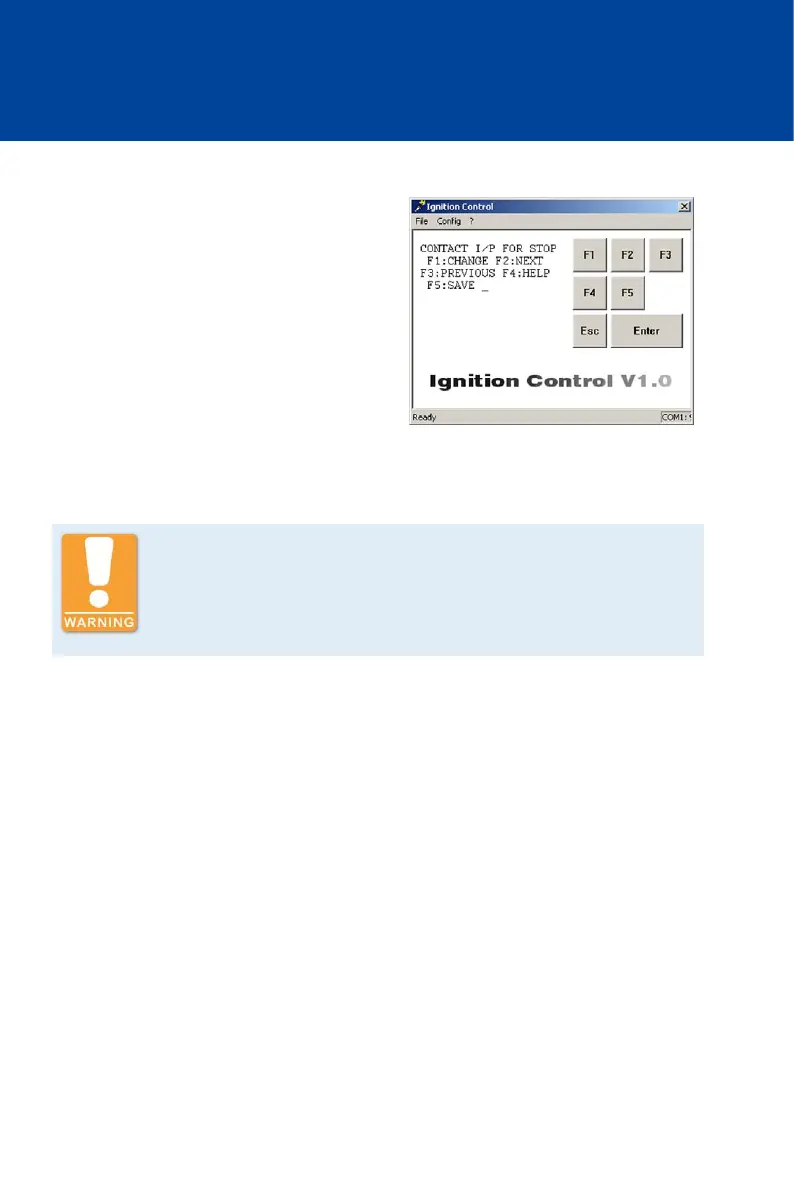

Open parameterization level ->
[F2] to CONTACT I/P -> [F1] ->
Set with [F1] to FOR STOP
or with [F2] to FOR A/B -> [F5]
8.5.10 Activate Potentiometer
Explosion hazard!
Never remove the cover for timing adjustment, unless the system is not
located in an explosive environment.
Reinsert the cover after every ignition timing adjustment made using the
potentiometer.
With the POT TIMING parameter, you can deactivate the potentiometer at the ignition controller
to avoid unauthorized changes in timing. Please observe that when the potentiometer is
deactivated, the potentiometer's timing setting will also be ignored, and all other ignition timing
adjustments will have the angle 0° BTDC added, regardless of the potentiometer's limits.
Possible values:
– ENABLE: The potentiometer of the ignition controller is activated. All other ignition
timing adjustments will be added to the ignition timing adjustment of the
potentiometer.
– DISABLE: The potentiometer of the ignition controller is deactivated. The angle 0° BTDC
is added to all other ignition timing adjustments.
