6 WIRING OF THE DEVICE
32 Rev. 01/2015

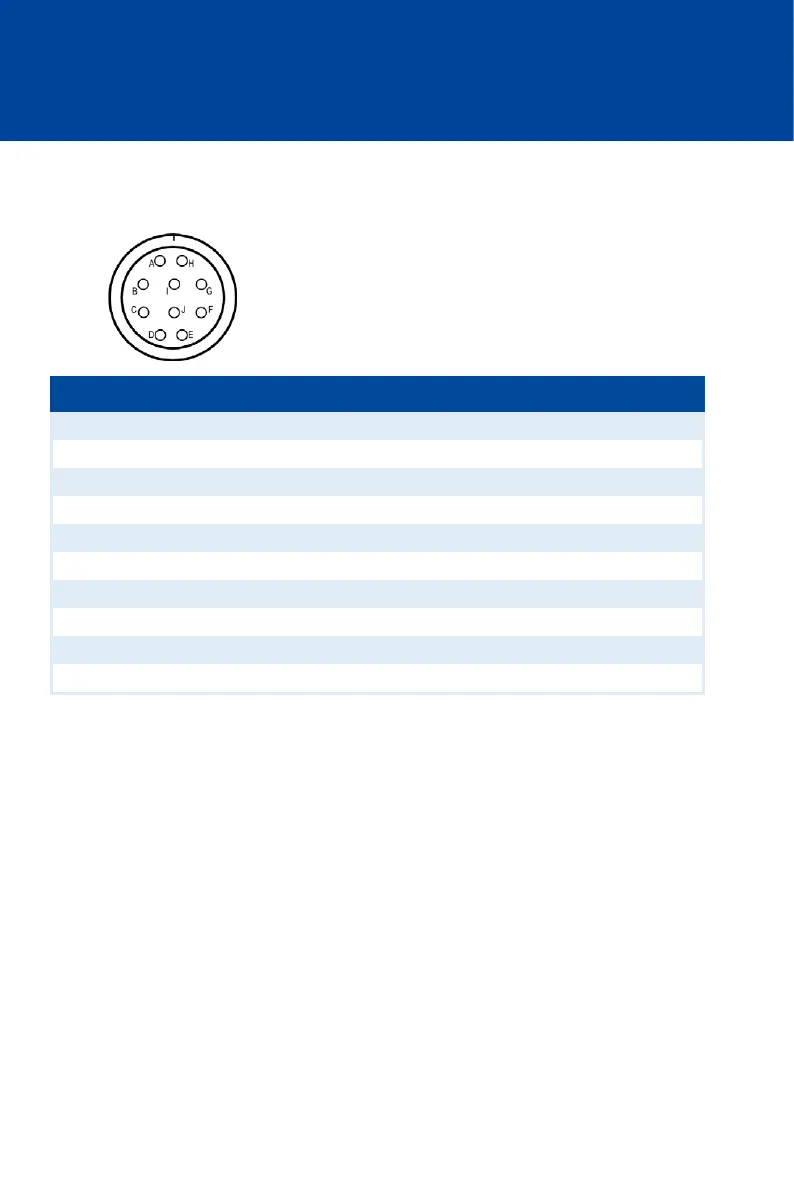

6.1.3 Input and Output Connector – P/N 06.00.511
Input connector: left front, 10-pole, socket
Pole Pole assignment
A (+) Supply voltage
B (-) Supply voltage
C (+) 4-20 mA
D Digital input (Switch A/B or Switch Start/Stop)
E (-) 4-20 m
A
F 4-20 mA PWR
G Pickup signal
H Supply voltage pickup (24 V DC)
I Pickup ground
J Switch Go/NoGo
