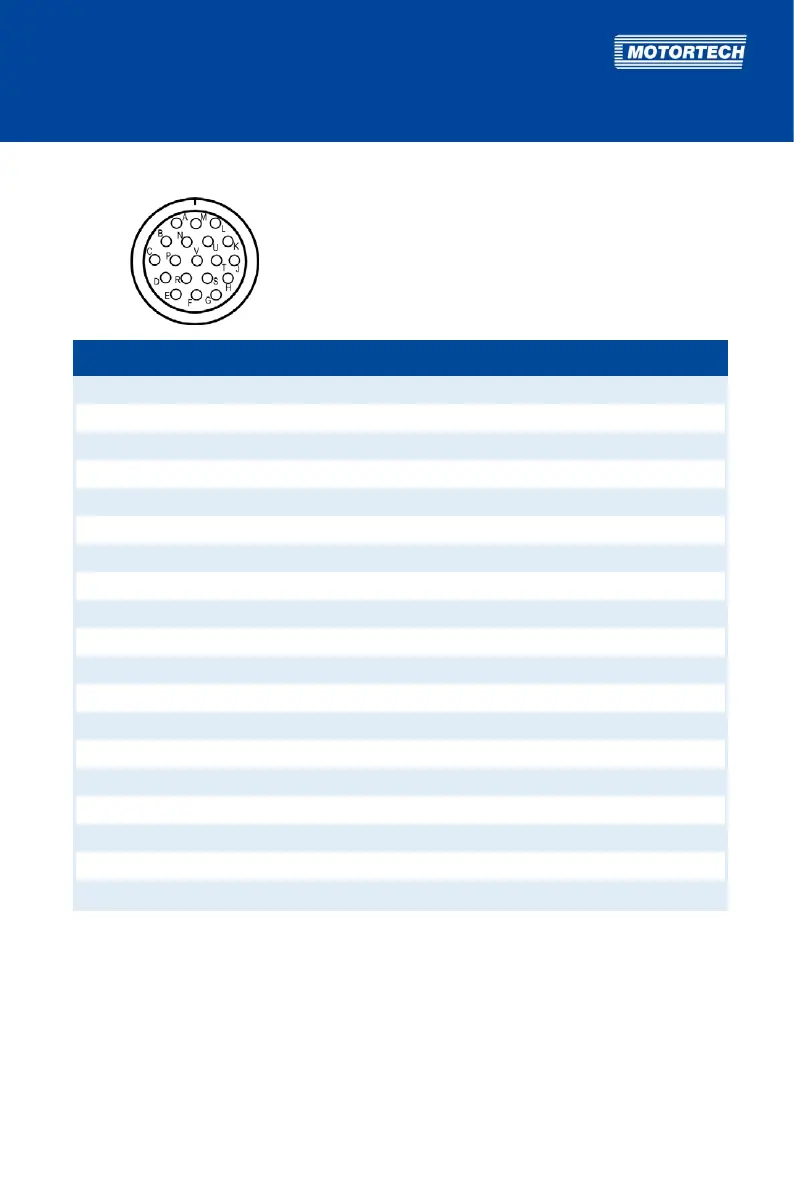

Output connector: right front, 19-pole, socket
Pole Pole assignment
A Ignition output A
B Ignition output B
C Ignition output C
D Ignition output D
E Ignition output E
F Ignition output F
G Measuring lead (1:1)
H Measuring lead (1:10)
J Ground
K Ignition output K
L Ignition output L
M Ignition output M
N Ignition output N
P Ignition output P
R Ignition output R
S Ignition output S
T Ignition output T
U Ignition output U
V Ignition output V
