6 WIRING OF THE DEVICE
56 Rev. 01/2015

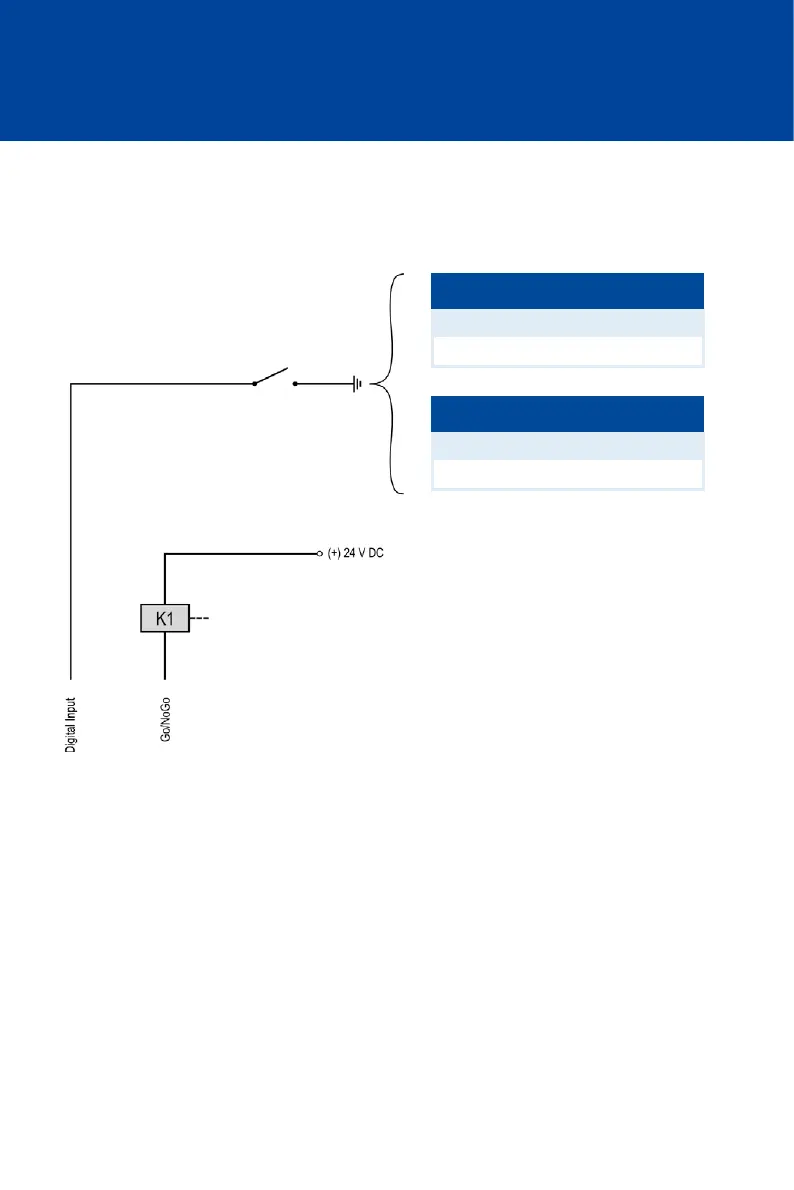

6.1.16 Wiring – Digital Input, Go/NoGo
The function of the digital input (Switch Start/Stop or Switch A/B) is specified via the
parameterization of the ignition controller (see Select Function for Digital Input on page 87).
Digital input
Function Switch Start/Stop
open Ignition - ON
closed Ignition - OFF
or
Function Switch A/B
open Schedule A
closed Schedule B
K1 = Go/NoGo relay
