Motortech MIC500 - Input and Output Connector - P;N 06.00.514

6 WIRING OF THE DEVICE
36 Rev. 01/2015
6.1.5 Input and Output Connector – P/N 06.00.514

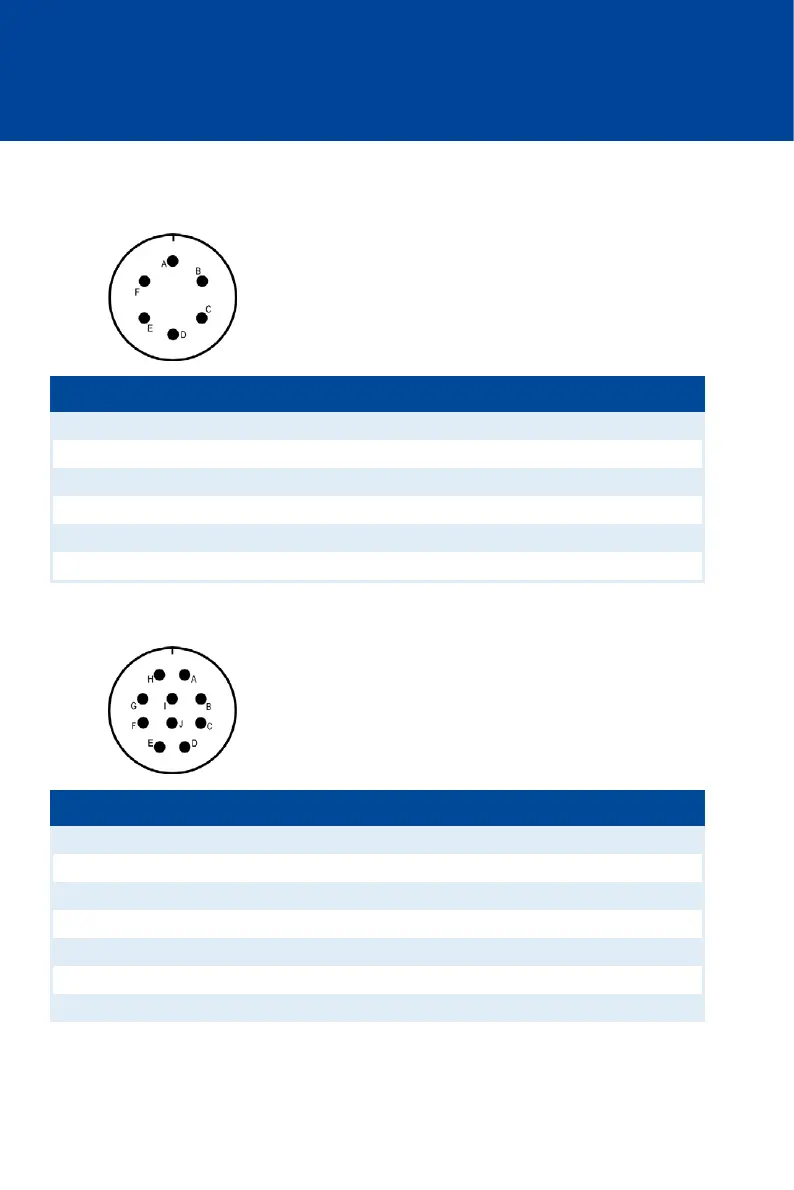

Input connector: left front, 6-pole, connector
Pin Pin assignment
A Pickup signal
B Supply voltage pickup (8 V DC)
C Pickup ground
D Switch Go/NoGo
E (+) Supply voltage
F (-) Supply voltage
right side of device, 10-pole, connector
Pin Pin assignment
A Not used
B Not used
C (+) 4-20 mA
D Digital input (Switch A/B or Switch Start/Stop)
E (-) 4-20 m
A
F 4-20 mA PWR
G Not used
