Rev. 01/2015 35
Pole Pole assignment
H Not used
I Not used
J Not used

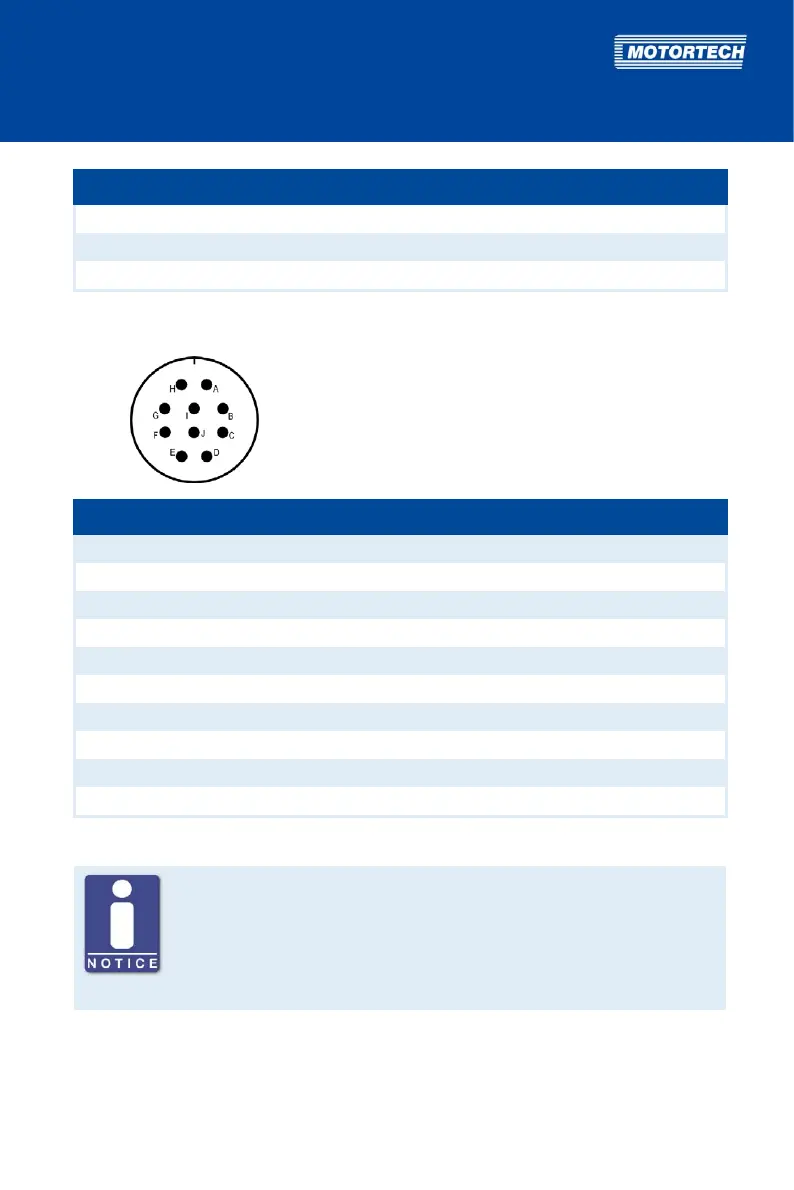

Output connector: right front, 10-pole, connector
Pin Pin assignment
A Ignition output A
B Ignition output B
C Ignition output C
D Ignition output D
E Ignition output E
F Ignition output F
G Measuring lead (1:1)
H Ignition output K
I Ignition output L
J Ground
No digital input at P/N 06.00.513
The device type P/N 06.00.513 is designed as a replacement for the ignition
controller CaterpillarĀ® 163-6164. Thus, the device does not have the digital
input (Switch A/B, Switch Start/Stop) as described in this operating manual.
With this device type, schedule A settings are applied solely for ignition
timing configuration.
