Motortech MIC500 - Input and Output Connector - P;N 06.00.513

6 WIRING OF THE DEVICE
34 Rev. 01/2015

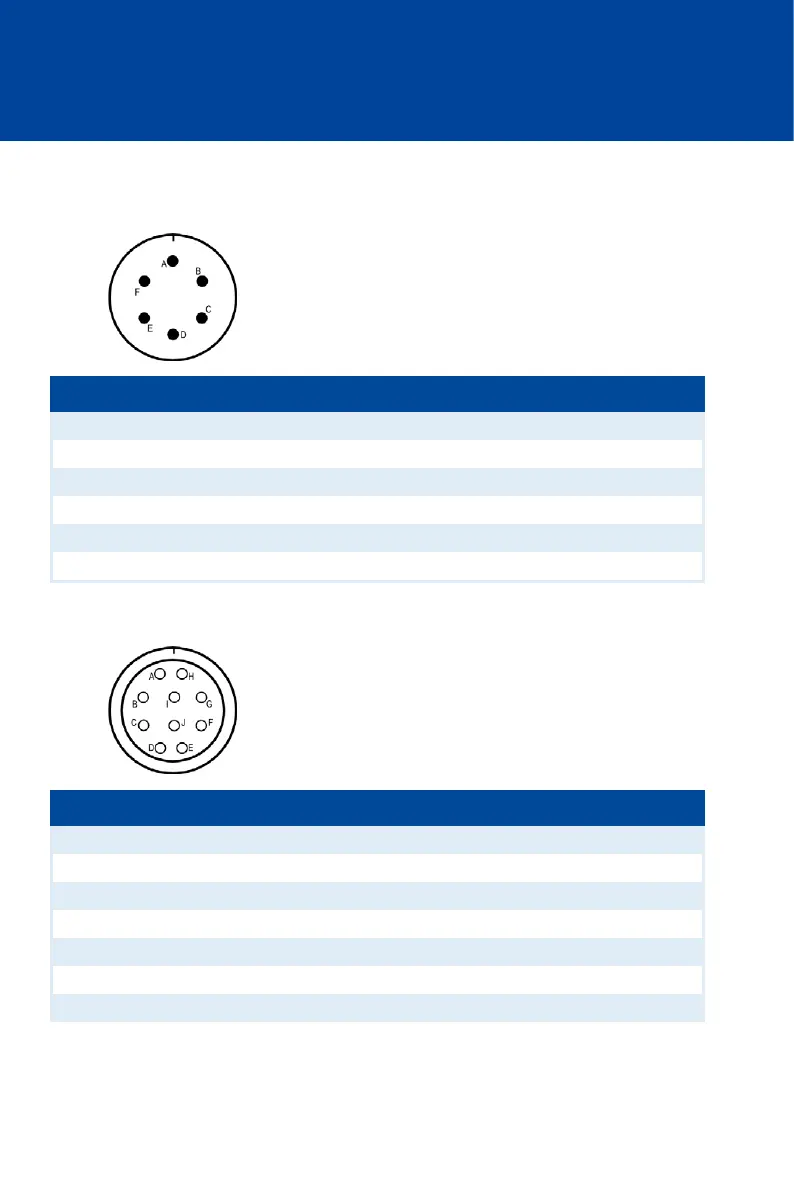

6.1.4 Input and Output Connector – P/N 06.00.513
Input connector: left front, 6-pole, connector
Pin Pin assignment
A Pickup signal
B Supply voltage pickup (8 V DC)
C Pickup ground
D Switch Go/NoGo
E (+) Supply voltage
F (-) Supply voltage
right side of device, 10-pole, socket
Pole Pole assignment
A Not used
B Not used
C (+) 4-20 mA
D Not used
E (-) 4-20 m
A
F 4-20 mA PWR
G Not used
