7 FUNCTIONS
60 Rev. 01/2015
7.5 Timing Correction
Operational safety!
The MIC500 ignition controller must first be correctly configured for the
engine being used before you can start the engine.
An incorrect configuration can result in damage to the engine.

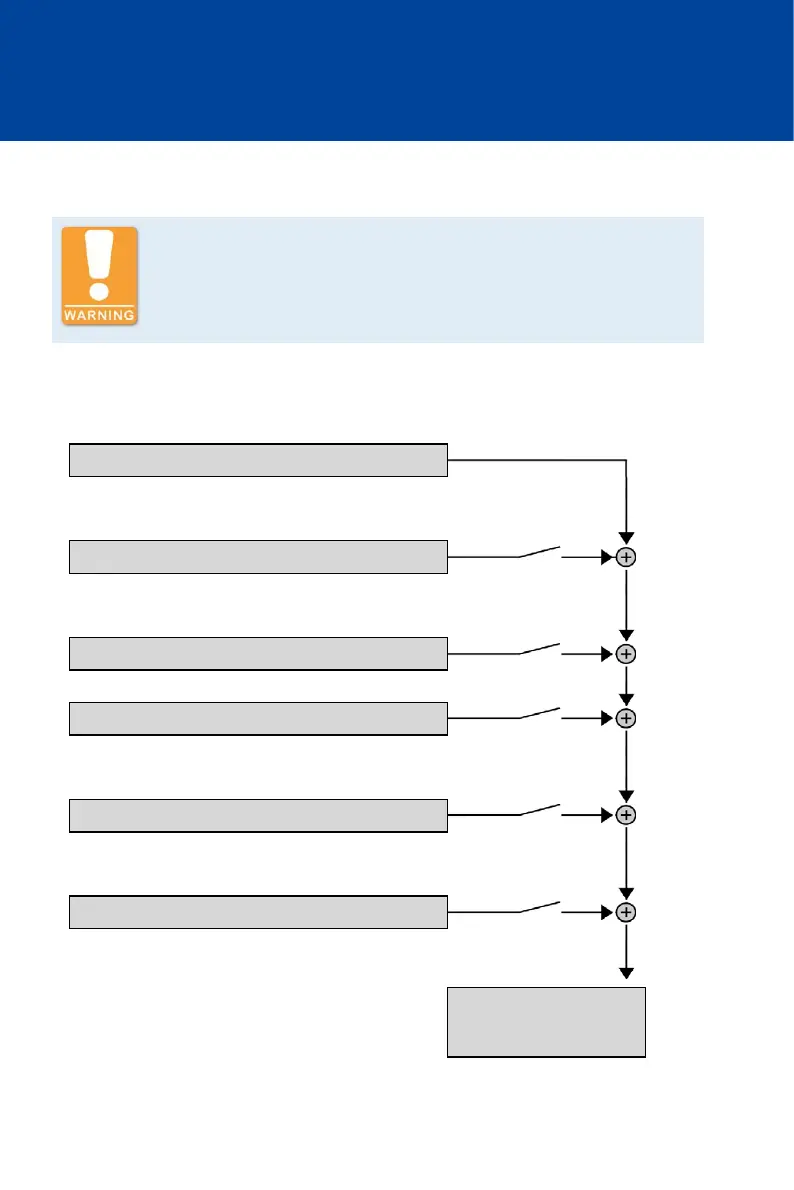

The ignition controller has several functions for ignition timing adjustment, which can be
activated or deactivated. The following chart shows an overview.
0° BTDC
Global:
Potentiometer
Per schedule:
4-20 mA input
Speed curve
Schedule B:
Ignition timing offset
Per cylinder:
Cylinder-to-cylinder alignment
Limited by the min./max.
ignition timing per
schedule
With MIC500 ignition controllers, the maximum adjustment range for ignition timing is 38°.
