Rev. 01/2015 41

Pin Pin assignment

H Not used

I Not used

J Not used

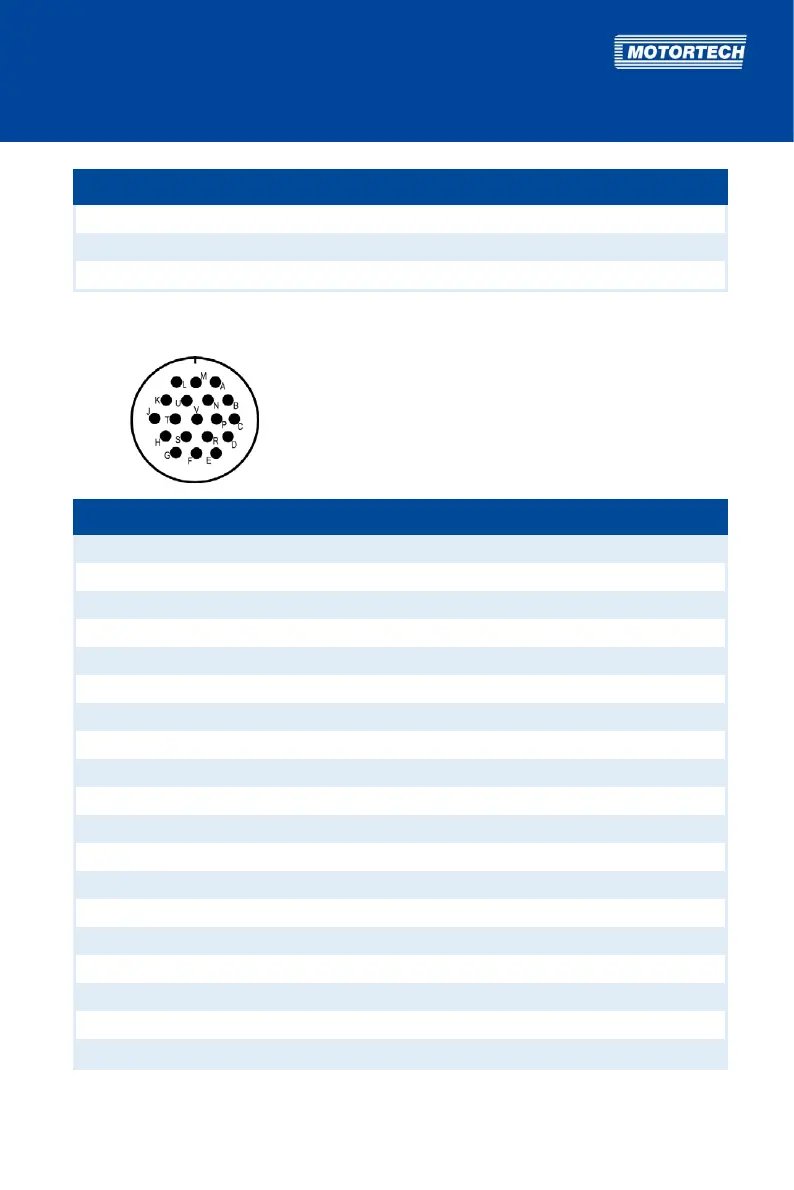

Output connector: right front, 19-pole, connector

Pin Pin assignment

A Ignition output A

B Ignition output B

C Ignition output C

D Ignition output D

E Ignition output E

F Ignition output F

G Measuring lead (1:1)

H Not used

J Ground

K Ignition output K

L Ignition output L

M Ignition output M

N Ignition output N

P Ignition output P

R Ignition output R

S Ignition output S

T Ignition output T

U Ignition output U

V Ignition output V
