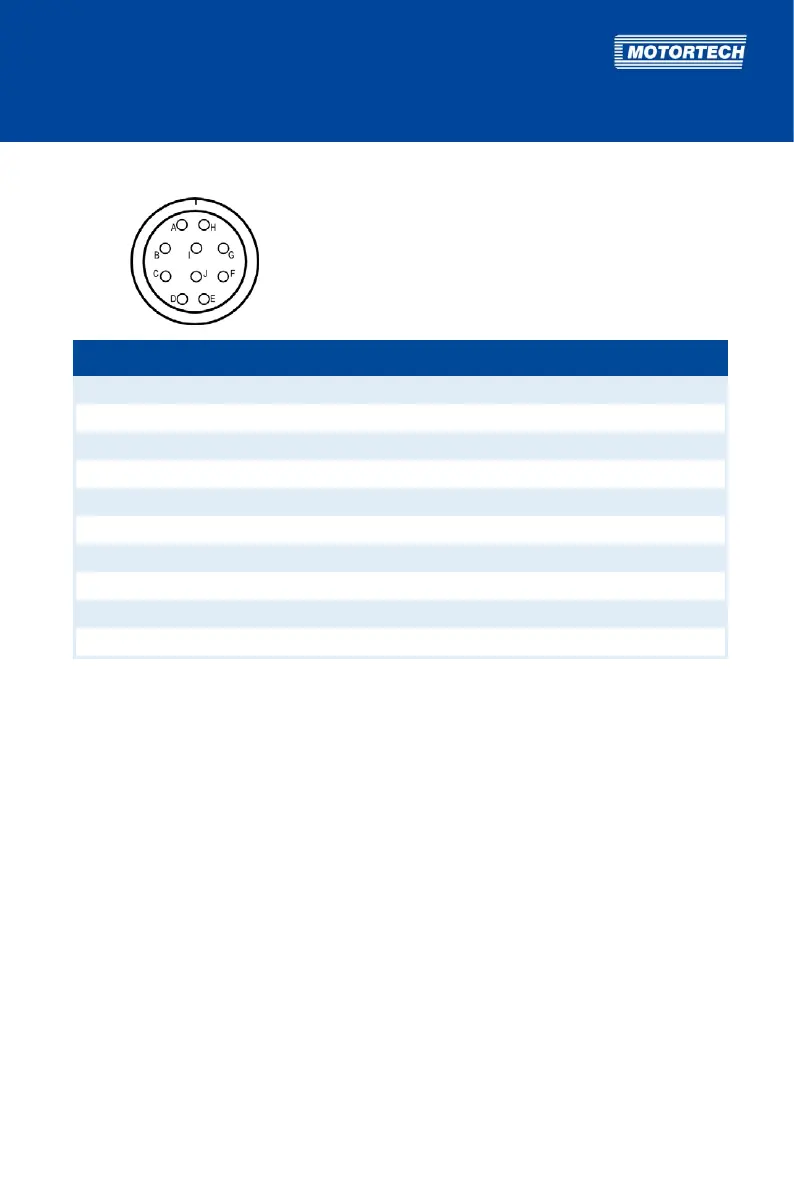

Output connector: left front, 10-pole, socket
Pole Pole assignment
A Ignition output A
B Ignition output B
C Ignition output C
D Ignition output D
E Ignition output E
F Ignition output F
G Ignition output K
H Ignition output L
I Ground
J Measuring lead (1:1)
