8 ADJUSTMENTS
90 Rev. 01/2015
Proceed as follows:

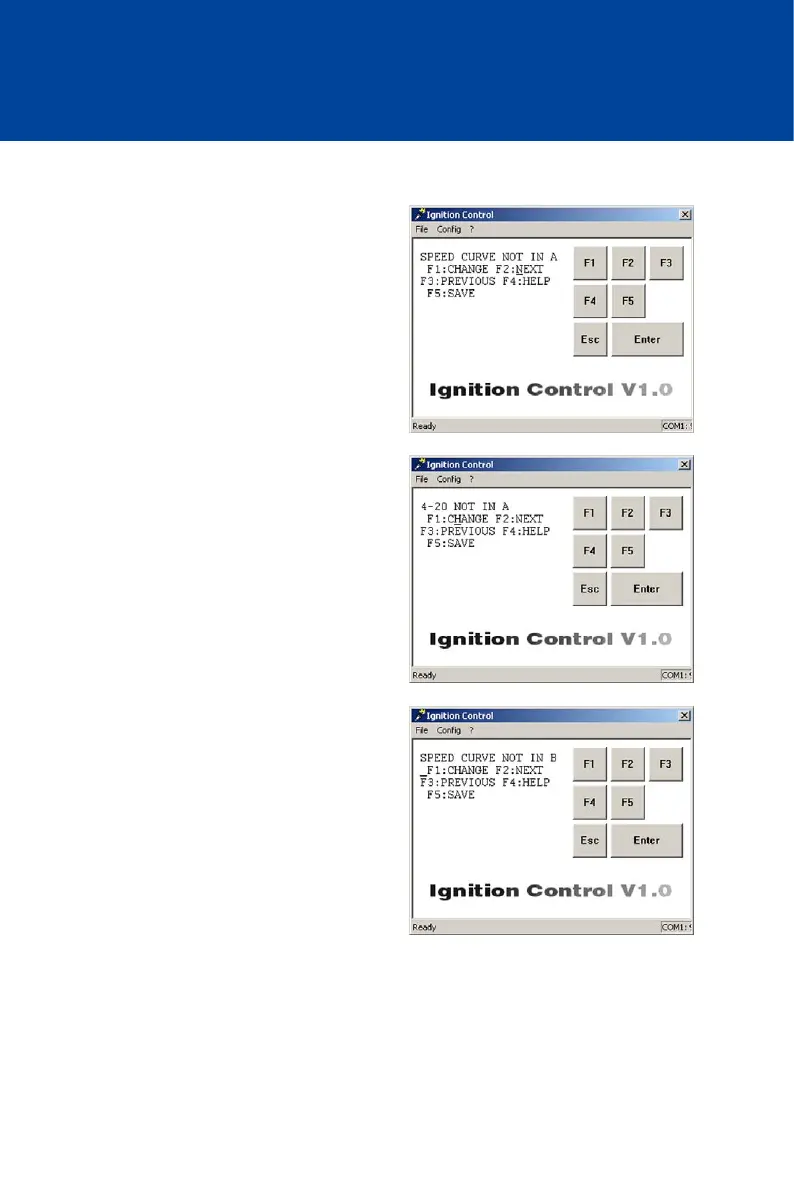

Activate Speed Curve for Schedule A
Open parameterization level ->
[F2] to SPEED CURVE IN A/NOT IN A -> [F1] ->
Set with [F1] to IN A
or with [F2] to NOT IN A -> [F5]
Activate 4-20 mA Input for Schedule A
Open parameterization level ->
[F2] to 4-20 IN A/NOT IN A-> [F1] ->
Set with [F1] to IN A
or with [F2] to NOT IN A -> [F5]
Activate Speed Curve for Schedule B
Open parameterization level ->
[F2] to SPEED CURVE IN B/NOT IN B -> [F1] ->
Set with [F1] to IN B
or with [F2] to NOT IN B -> [F5]
