8 ADJUSTMENTS
96 Rev. 01/2015

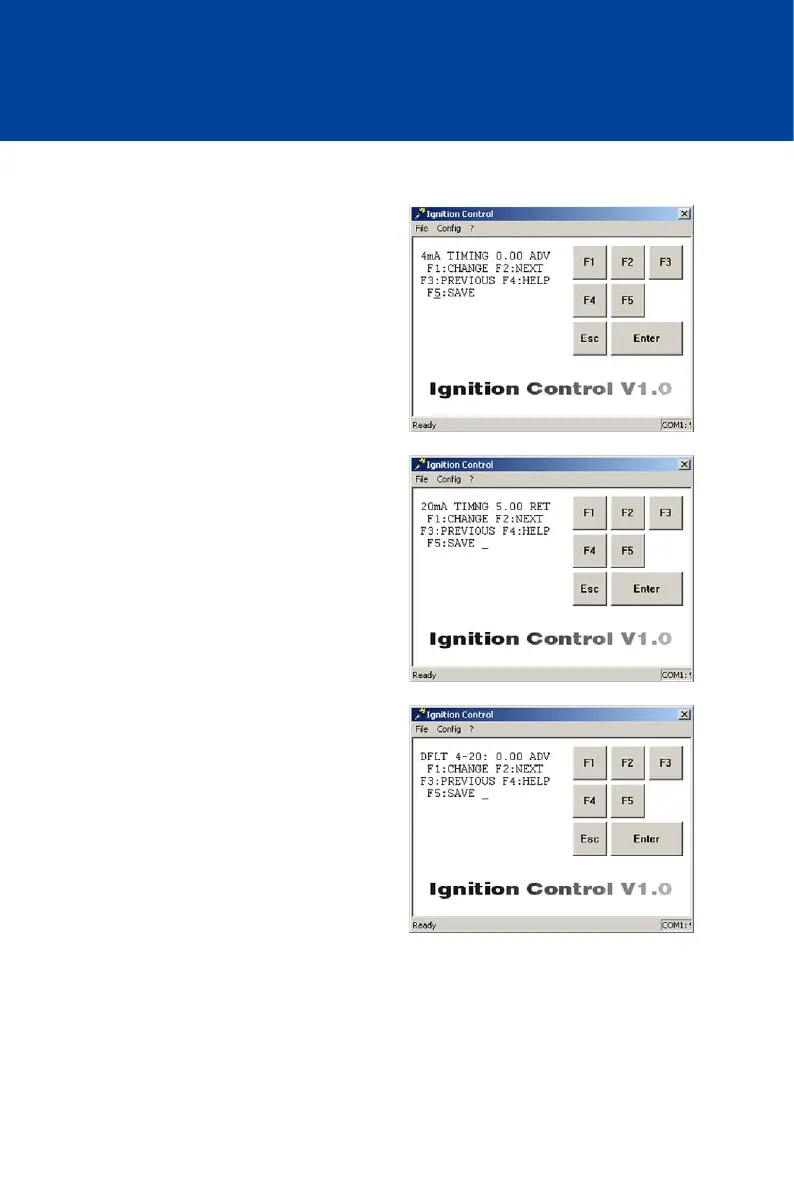

Proceed as follows:
Enter Ignition Timing Adjustment at 4 mA
Open parameterization level ->
[F2] to 4mA TIMING -> [F1] ->
Enter ignition timing adjustment ->
[Enter] -> Select [F1] for ADVANCE
or [F2] for RETARD -> [F5]
Enter Ignition Timing Adjustment at 20 mA
Open parameterization level ->
[F2] to 20mA TIMING -> [F1] ->
Enter ignition timing adjustment ->
[Enter] -> Select [F1] for ADVANCE
or [F2] for RETARD -> [F5]
Enter Ignition Timing Adjustment in the Event of
Signal Loss
Open parameterization level ->
[F2] to DFLT 4-20 -> [F1] ->
Enter ignition timing adjustment ->
[Enter] -> Select [F1] for ADVANCE
or [F2] for RETARD -> [F5]
