8 ADJUSTMENTS
98 Rev. 01/2015
Value ranges:
– # SPEED POINTS: 0 to 5, whole numbers
If you enter the value for the # SPEED POINTS parameter, then there is no speed
curve activated and therefore no speed points can be configured.
– NEW SPEED: 0 to 5000, whole numbers
– NEW ANGLE: 40.00 ADV (advance) to 40.00 RET (retard) with up to two decimal places
Enter decimal places with a period as the delimiter, e.g. 35.55.
Proceed as follows:

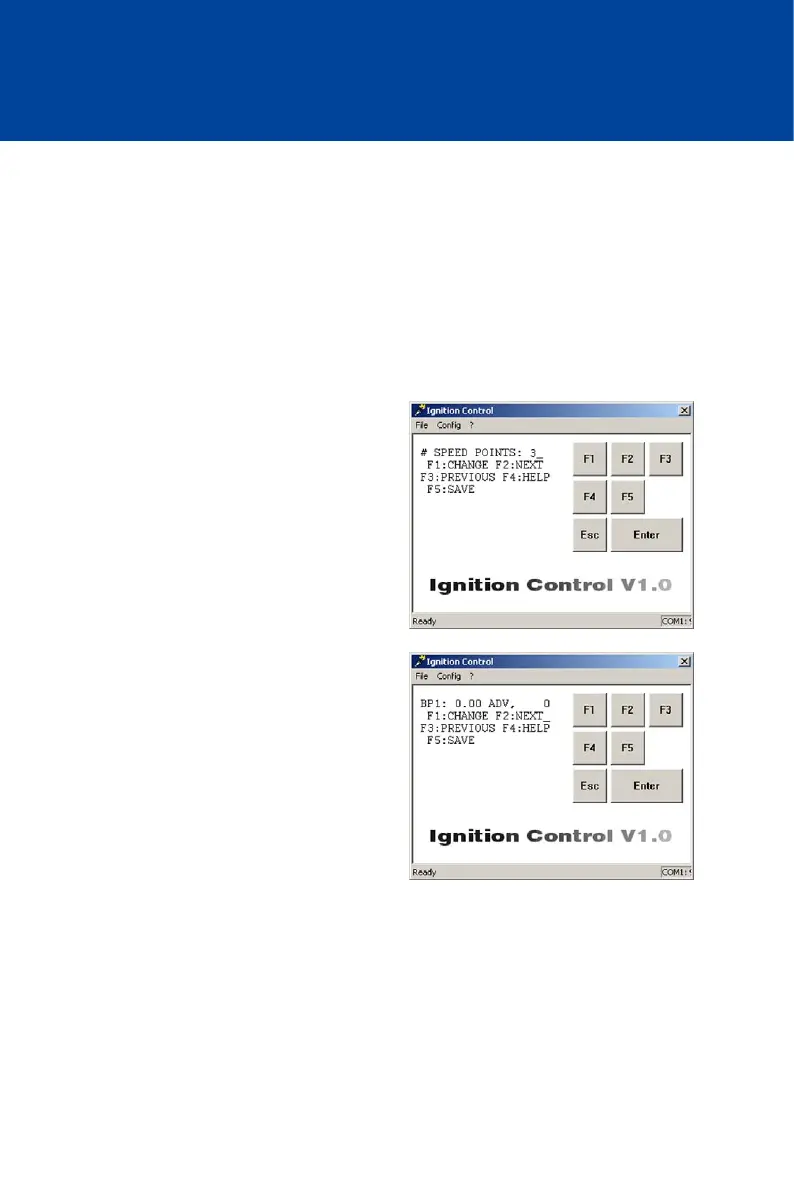

Specify Number of Speed Points
Open parameterization level ->
[F2] to # SPEED POINTS -> [F1] ->
Enter number of speed points ->
[Enter] -> [F5]
Define Speed Point
Open parameterization level ->
[F2] to to desired speed point BPx (e.g. BP1) ->
[F1] -> Enter speed value (NEW SPEED) ->
[Enter] -> Enter ignition timing adjustment
(NEW ANGLE) -> [Enter] ->
Select [F1] for ADVANCE
or [F2] for RETARD -> [F5]
(x=desired speed point)
