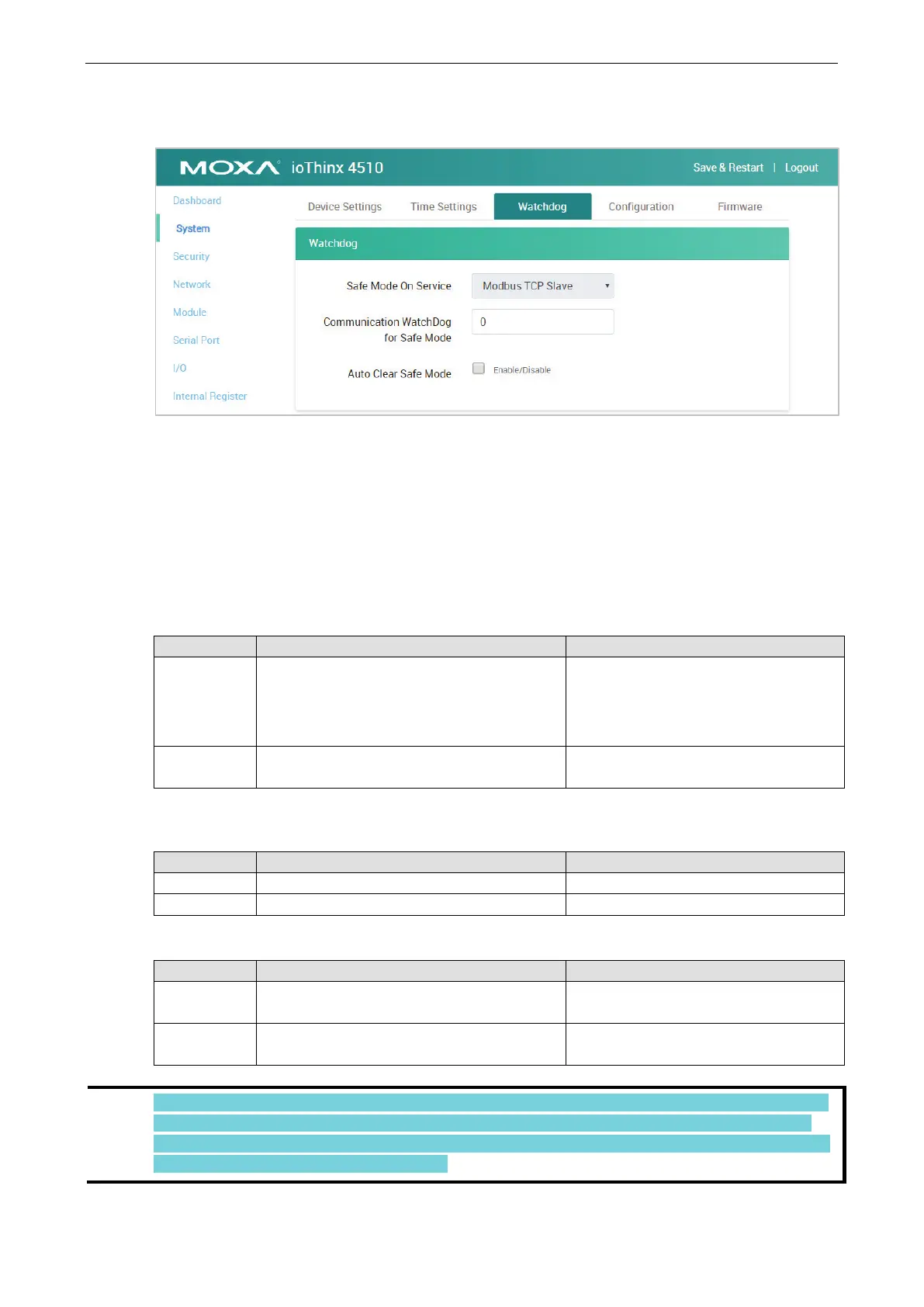

Watchdog
Safe Mode on Service: Select the service that you want to link the watchdog to in order to keep
monitoring the connection status (option: Modbus TCP Slave).
Communication Watchdog for Safe Mode: The timeout value when the master of Safe Mode on
Service is disconnected (unit: sec(s), 0 to 65535, 0 is disable).
Auto Clear Safe Mode: Click the checkbox to enable or disable automatically clearing the safe mode
status.
Once the communication watchdog is timeout, the safe mode will be enabled. The behavior of ioThinx 4510
and 45MR modules are listed below:
ioThinx 4510 45MR modules
Behavior • Wait for Modbus/TCP Master’s re-connection
• Output channels cannot be controlled via
any access e.g. RESTful API or web console
• Input channels: no change
• Output channels: set the channel
status according to pre-defined safe
mode settings
LED status RDY: Red fast blinking Status: Red fast blinking (applied to the
modules which have output channels only)
Once the connection is recovered, the behavior of the ioThinx 4510 and 45MR modules are listed below.
1. Auto Clear Safe Mode: Enabled
ioThinx 4510 45MR modules
Behavior Recovered to normal status Recovered to normal status
LED status RDY: Green Status: Green
2. Auto Clear Safe Mode: Disabled
ioThinx 4510 45MR modules
Behavior Status will remain on safe mode until the safe
mode flag is cleared.
Status will remain on safe mode until the
safe mode flag is cleared.
LED status RDY: Red fast blinking until the error flag is
cleared manually
Status: Red fast blinking until the error
flag is cleared manually
NOTE
If auto clear safe mode is disabled in the watchdog configuration, once the Modbus connection reconnects,
click
the Exit Safe Mode button on the dashboard or type 0 in the watchdogAlarmFlagClear register
through Modbus
to exist safe mode status. Otherwise, output channels cannot be controlled via any access
method, such as
RESTful API and web console.
