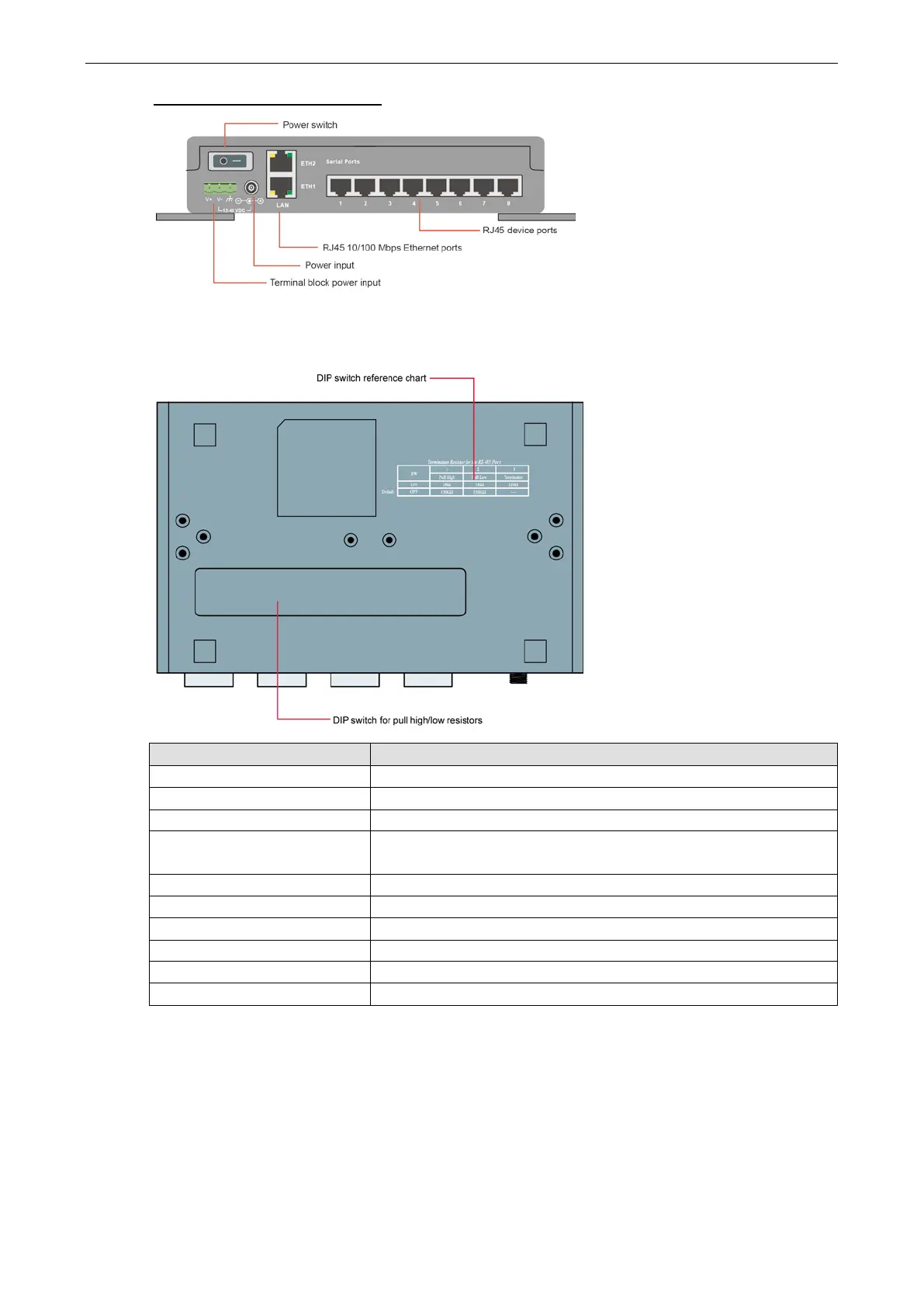

NPort 5600-8-DT/DTL Series Overview of Hardware
NPort 5610-8-DT-J, 5650-8-DT-J
Bottom View
Item Description
PWR LED Indicates power input status (red)
Ready and Fault LEDs Indicates normal operation (green) or IP conflict (red)
Link LED Flashes when Ethernet is connected
InUse LEDs Flashes when device port is transmitting or receiving data (green)
Device port Tx LEDs Flashes when device port is transmitting data (green)
Device port Rx LEDs Flashes when device port is receiving data (orange)
Power input For power jack connection to AC power source here
Ethernet port For Ethernet network cable connection
DB9(M) serial ports For attachment of serial devices
Reset button Press and hold with a pointed object for 5 seconds to load factory defaults
