NPort 5600-8-DT/DTL Series Cable Wiring
A-2

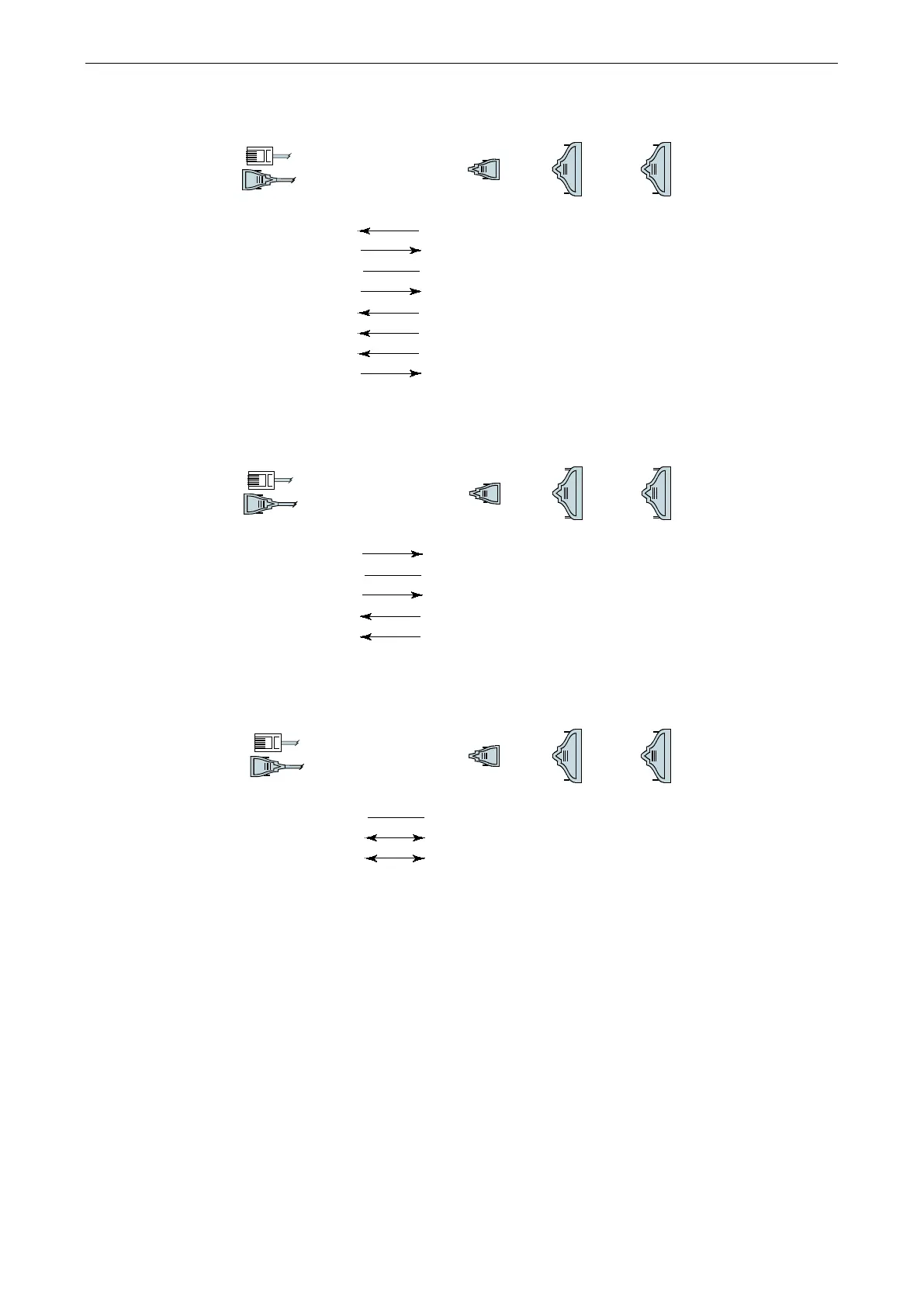

RS-232 Cables
NPort Serial Device
RJ45 DB9(F) DB9(M) DB25(M) DB25(F)
DSR 1 6 4 6 20 DTR
RTS 2 7
8 4 5 CTS
GND 3 5
5 7 7 GND
TxD 4 3
2 2 3 RxD
RxD 5 2
3 3 2 TxD
DCD 6 1 1 8 8 DCD
CTS 7 8 7 5 4 RTS
DTR 8 4
6 20 6 DSR
RS-422, 4-wire RS-485 Cables
NPort Serial Device
RJ45 DB9(F) DB9(M) DB25(M) DB25(F)
TxD+ 2 2
3 3 2 RxD+
GND 3 5 5 7 7 GND
TxD- 4 1
1 8 8 RxD-
RxD+ 5 3
2 2 3 TxD+
RxD- 6 4
6 20 6 TxD-
2-wire RS-485 Cables
NPort Serial Device
RJ45 DB9(F) DB9(M) DB25(M) DB25(F)
GND 3 5 5 7 7 GND
Data+ 5 3 2 2 3 Data+
Data- 6 4
6 20 6 Data-
