NPort 5600-8-DT/DTL Series Using NPort Administrator
Select the Stop command to suspend live monitoring.

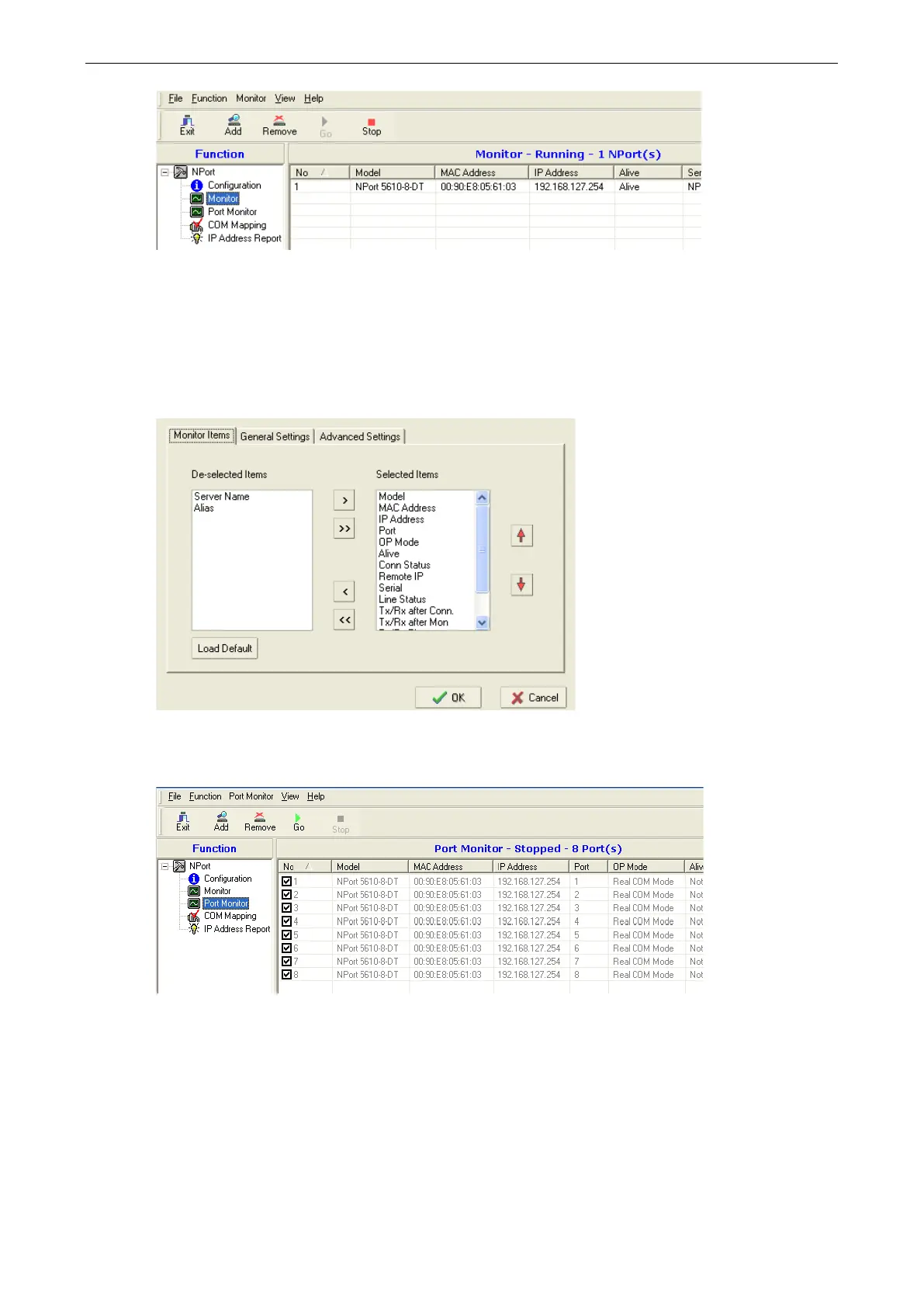

Port Monitor
The Port Monitor function is identical to the Monitor function, but with many additional items that can be
monitored, as shown below.
In addition, each item on the port monitor list will be an individual device port on an NPort device server. Each
device port can be selected or deselected for monitoring.
COM Mapping
The NPort Administrator Suite is installed with Real COM drivers that work with Windows 95 and above. These
drivers transparently connect a COM port on the PC to a device port on the NPort device server. This allows a
local application to use COM5, for example, to communicate with a device attached to the NPort. Use the COM
Mapping function to define the mapping assignments.
