MR TAPCON 250 - Performance features

4 Product description
Maschinenfabrik Reinhausen GmbH 2022 238595028/00 EN TAPCON
®
250
Load profile of the grid
Control path
Regulating transformer
Automatic voltage regulator
Long- distance communication and control center
SCADA
Automatic voltage regulator
Control variable
Line voltage
Desired value
Line voltage
Measurement transformer
Inputs
Digital and analog

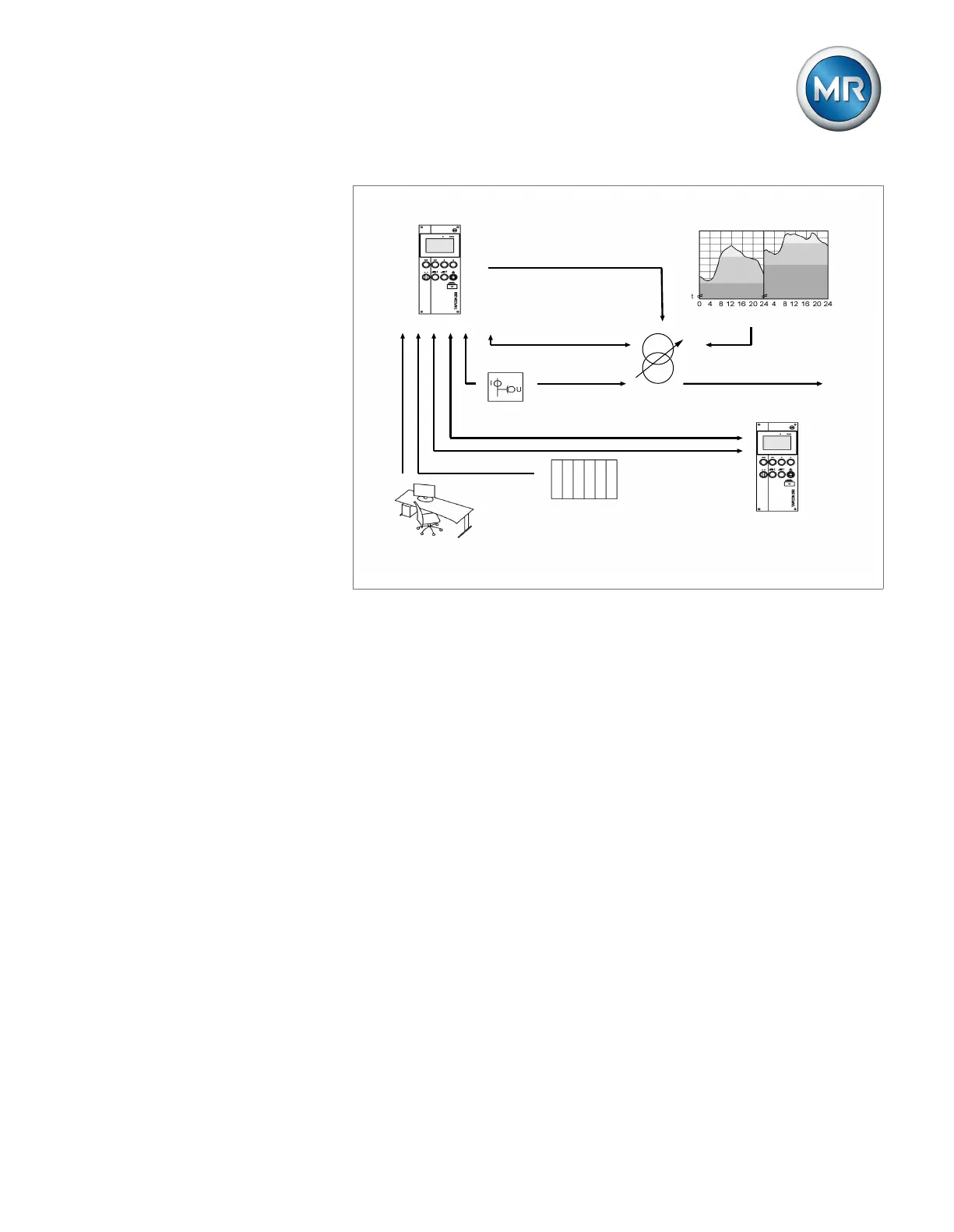

Figure3: Operating principle overview
4.3 Performance features
▪ Web-based visualization
▪ Automatic voltage regulation
– 1 to 5 desired values
▪ Desired value setting
– Analog
– Digital
– Using TDSC
▪ Peak memory
▪ Measured value memory
▪ Voltage balance
▪ Hunting counter
▪ Reverse power flow
▪ Line drop compensation
– R&X compensation: Compensation for voltage drops on the line
– Z compensation: Compensation for voltage fluctuations in the meshed
grid
